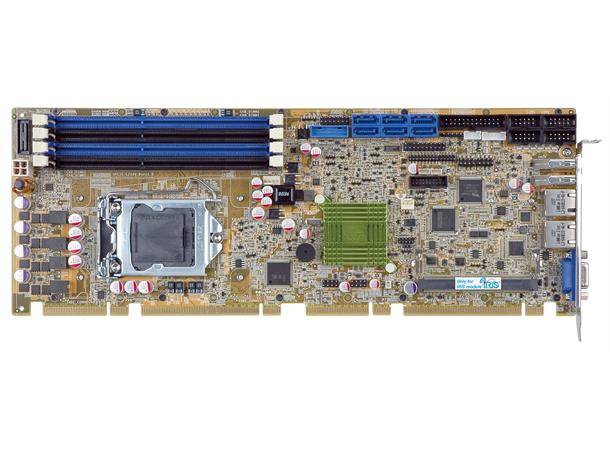

PCIE-Q870-i2-R10

PICMG 1.3/Socket 1150

Product nr: 117280
66436

CPULGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
PCHIntel® Q87
BIOSAMI UEFI BIOS
BIOS version: ARxx is for one PCIEx4 purpose from PCH
BIOS version: APxx is for four PCIEx1 purpose from PCH
System MemoryFour 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 32GB
EthernetLAN1: Intel® I217LM with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller with NCSI support
I/O Interface4 x RS-232
1 x RS-422/485
1 x LPT
1 x 6-pin wafer for KB/MS
1 x mSATA (colay SATA port 6) (support SATA 6GB/s signal only)
6 x SATA 6GB/s (RAID 0, 1, 5, 10 supported)
8 x USB 2.0 (4 by pin header, 4 by backplane pin header)
4 x USB 3.0 (2 by rear IO, 2 by pin header)
Digital I/O8-bit digital I/O (4-bit input, 4-bit output)
Super I/OFintek F81866
Infrared1 x 5-pin header
TPM1 x TPM connector (2x10 pin)
SMBus1 x 4-pin wafer
AudioSupported by IEI AC-KIT-892HD Audio Kit
Display InterfacesVGA (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
ExpansionPCIe signal and PCI signal via golden finger
PCI signal by ITE 8892 (PCIe to PCI bridge)
1 x Full-size PCIe Mini card slot (colay mSATA)
Watchdog TimerSoftware programmable, support 1~255 sec. system reset
Power Supply5V/12V, AT/ATX support
Power Consumption5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory)
GraphicIntel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2
Full MPEG2, VC1, AVC Decode
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Humidity5% ~ 95%, non-condensing
Dimensions338 mm x 126 mm
WeightGW: 1200g / NW: 420g
Front Panel1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
I2C1 x 4-pin wafer
Fan Connector1 x 4-pin smart fan connector (CPU fan)
1 x 4-pin smart fan connector (system fan)
iRIS Remote Management Module1 x iRIS-2400 slot
LAN LED2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED

Ordering Information Ordering Information

Part No.Description
PCIE-Q870-i2-R10 Full-size PICMG 1.3 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s, mSATA, RS-232, PCIe Mini, Audio, iRIS-2400 and RoHS
iRIS-2400-R10 IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface
32205-003800-300-RS RS-422/485 cable, 200mm
19800-010500-200-RS USB 3.0 cable 457mm with bracket
19800-000075-RS KB/MS cable with Bracket
32102-000100-200-RS SATA power cable, MOLEX 5264-4P to SATA15P
32200-015100-RS LPT Cable
CF-1150SB-R11 Special cooler kit for LGA1150, high-performance compatible, 65W
CF-1150SC-R10 Special cooler kit for LGA1150, 1U chassis compatible, 65W
CF-1150SE-R10 Special cooler kit for LGA1150, high-performance compatible, 95W
DP-DVI-R10 DisplayPort to DVI-D converter board (for IEI iDP connector)
DP-HDMI-R10 DisplayPort to HDMI converter board (for IEI iDP connector)
DP-LVDS-R10 DisplayPort to LVDS converter board (for IEI iDP connector)
DP-VGA-R10 DisplayPort to VGA converter board (for IEI iDP connector)
DP-DP-R10 DisplayPort to DisplayPort converter board (for IEI iDP connector)
AC-KIT-892HD-R10 7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17

Ordering Information Packing List

1 * PCIE-Q870-i2 Single Board Computer1 * Dual RS-232 Cable (P/N:19800-000051-RS)
4 * SATA Cable (P/N:32000-0628000-RS)1 * USB 2.0 cable (P/N:19800-003100-300-RS)
1 * Utility CD1 * QIG (Quick Installation Guide)
