Spec Item		Description
Display	LCD Size	24"
	Brightness(cd/m2)	300
	Max Resolution	1920(W) x 1080(H)
	Contrast Ratio	5000 : 1
	Backlight MTBF(hrs)	50000
System	CPU	Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor
	Chipset	Intel® QM87
	HDD	1 x 2.5" SATA HDD bay
	SSD	CF Type II
	SBC Model
I/O Interface	Ethernet
	Audio Codec
	RAM	4GB 1600MHz DDR3 SDRAM (2GB*2) Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB
	CD-ROM
	I/O Ports and Switches	DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* Composite Video Input: 1 x BNC connector (female)
Power	Input
	Output
	Power adapter
Environment	Operating Temperature	-15°C~55°C
	Operating Vibration
	Operating Shock
	Safety & EMC
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C~60°C
	IP Level
Physical Characteristics	Color
	Mounting
	Dimensions (LxWxH) (mm)	592 mm x 374 mm x 113 mm
	Construction
	Cutout Dimensions	576 mm x 358 mm
Option	iRIS
Weight	Weight	13.03Kg
Expansion Slots	Expansion Slots
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.2767mm x 0.2767mm
	Viewing Angle (H-V)	178° / 178°
Touch	Touch Screen	EXC7200 (2-point)
Touch	Touch Controller	6H
Other Features	System Cooling
I/O Interface	I/O Interface	1 x DVI-D
		1 x HDMI
		1 x Line in
		1 x Line out
		1 x Mic
		1 x PS/2
		1 x Power Switch
		1 x RS-232((DB-9))
		4 x RS-422/485((2.5 kv isolation protection))
		2 x USB2.0
		2 x USB3.0
		1 x Power In(Isolated 18-36V DC terminal block)
		2 x CAN-bus(terminal block (2.5 kv isolation protection))
		2 x Antenna SMA((reserved))
		1 x VGA
		2 x LAN(RJ-45 for Gbe)

Number of articles found:

MARITIME PRODUCTS

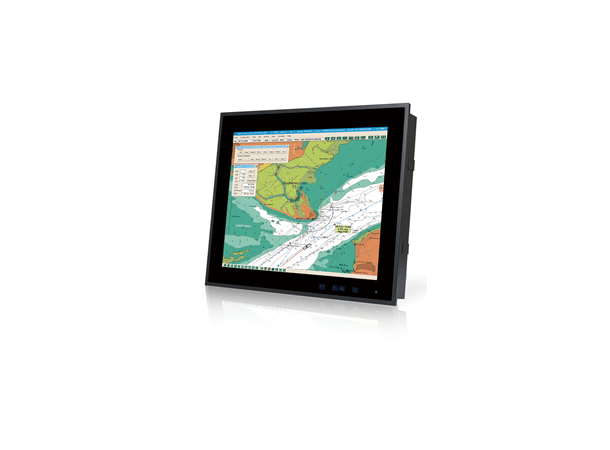

S24A-QM87i-i5/PC/4G-R10 Marine Panel PC

IEI/24"/i5-4400E/4GB ram/18-36VDC

Product nr: 116692

Spec Item		Description
Display	LCD Size	24"
	Brightness(cd/m2)	300
	Max Resolution	1920(W) x 1080(H)
	Contrast Ratio	5000 : 1
	Backlight MTBF(hrs)	50000
System	CPU	Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor
	Chipset	Intel® QM87
	HDD	1 x 2.5" SATA HDD bay
	SSD	CF Type II
	SBC Model
I/O Interface	Ethernet
	Audio Codec
	RAM	4GB 1600MHz DDR3 SDRAM (2GB*2) Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB
	CD-ROM
	I/O Ports and Switches	DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* Composite Video Input: 1 x BNC connector (female)
Power	Input
	Output
	Power adapter
Environment	Operating Temperature	-15°C~55°C
	Operating Vibration
	Operating Shock
	Safety & EMC
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C~60°C
	IP Level
Physical Characteristics	Color
	Mounting
	Dimensions (LxWxH) (mm)	592 mm x 374 mm x 113 mm
	Construction
	Cutout Dimensions	576 mm x 358 mm
Option	iRIS
Weight	Weight	13.03Kg
Expansion Slots	Expansion Slots
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.2767mm x 0.2767mm
	Viewing Angle (H-V)	178° / 178°
Touch	Touch Screen	EXC7200 (2-point)
Touch	Touch Controller	6H
Other Features	System Cooling
I/O Interface	I/O Interface	1 x DVI-D
		1 x HDMI
		1 x Line in
		1 x Line out
		1 x Mic
		1 x PS/2
		1 x Power Switch
		1 x RS-232((DB-9))
		4 x RS-422/485((2.5 kv isolation protection))
		2 x USB2.0
		2 x USB3.0
		1 x Power In(Isolated 18-36V DC terminal block)
		2 x CAN-bus(terminal block (2.5 kv isolation protection))
		2 x Antenna SMA((reserved))
		1 x VGA
		2 x LAN(RJ-45 for Gbe)
