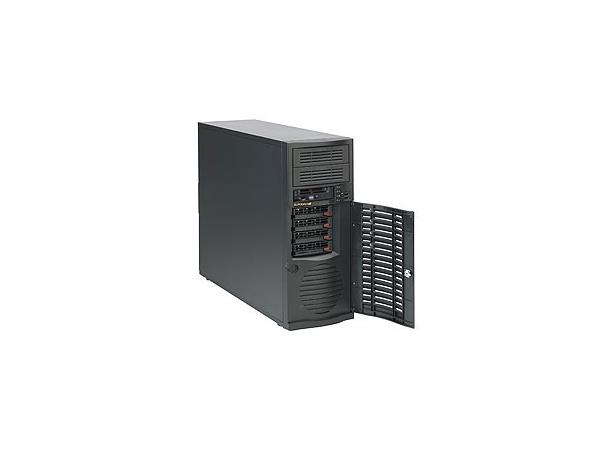

Supermicro 733TQ-665B Midi-tower chassis

ATX, 665W PSU, 4x HDD Hot-swap

Product nr: 119810

Supermicro 733TQ-665B Midi-tower chassis ATX, 665W PSU, 4x HDD Hot-swap

Antall i kart: 12

Description

Product SKUs

CSE-733TQ-665B	SuperChassis 733TQ-665B (Black)



Form Factor

Mid-Tower & Workstation chassis support for max. motherboard size - 12" x 13" E-ATX


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	16.8" (427 mm)
Width	7" (178 mm)
Depth	20.9" (531 mm)
Weight	40 lbs (18.2 kg)
Available Colors	Black


Expansion Slots

Supports 7x Full-height, full-length I/O expansion slots


Drive Bays

Hot-swap	4x 3.5" SAS / SATA hot-swap drive bays SAS or enterprise SATA HDD only recommended
Peripheral Bay	2x 5.25" peripheral drive bay 1x 3.5" bay


SATA / SAS Backplane

4 x 3.5" SATA / SAS Backplane with SES2


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LED System Overheat LED
Ports	2x Front side USB ports (USB 2.0 ready)


Motherboard(s) for CSE-733TQ-665B


C7B75	C7Z87
C7Z87-OCE	X10SAE
X10SAT	X10SLH-F
X10SLL+-F	X10SLL-F
X10SLL-S	X10SLL-SF
X10SLM+-F	X10SLM+-LN4F
X10SLM-F	X10SLX-F
X8DAL-3	X8DAL-i
X8DTL-3	X8DTL-3F
X8DTL-6	X8DTL-6F
X8DTL-6L	X8DTL-i
X8DTL-iF	X8DTL-L
X8SIE	X8SIE-F
X8SIL	X8SIL-F
X9DAL-3	X9DAL-i
X9SAE	X9SAE-V
X9SCA	X9SCA-F
X9SRA


System Cooling

Fans	1x 12cm PWM rear exhaust fan 1x 9cm PWM fan


Operating Environment (System)

Operating Temperature Range	10° - 35°C (50° - 95°F)
Non-Operating Temperature Range	-40° - 70°C (-40° - 158°F)
Humidity Range	8 - 90% non-condensing
Non-Operating Humidity Range	5 - 95% non-condensing


Power Supply

665W AC-DC power supply
AC Input	100 - 240V, 50-60Hz, 10-5 Amp
+5V	30 Amp
+5V standby	6 Amp
+12V	54 Amp
-12V	0.5 Amp
+3.3V	24 Amp
Certification	Bronze Certified [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-733TQ-665B	1	Mid tower chassis (Black)
Backplane	CSE-SAS-733TQ	1	4x 1" SAS backplane w/SES-II
Cable(s)	CBL-0049L CBL-0084	1 1	Front control cable 16 pin to 16 pin Front control cable 16-pin split convertor
Fan(s)	FAN-0076L4 FAN-0077L4	1 1	92x25mm 4-pin PWM fan 120X38mm 4-pin PWM fan
Peripheral Drive(s)	CSE-PT36-BOEM	1	Black 5.25" dummy tray
Power Supply	PWS-665-PQ	1	665W PS2 power supply with 8cm fan
Hot-swap drive tray	CSE-PT39-B0	4	Drive tray for SC733 & SC813 (Black)
