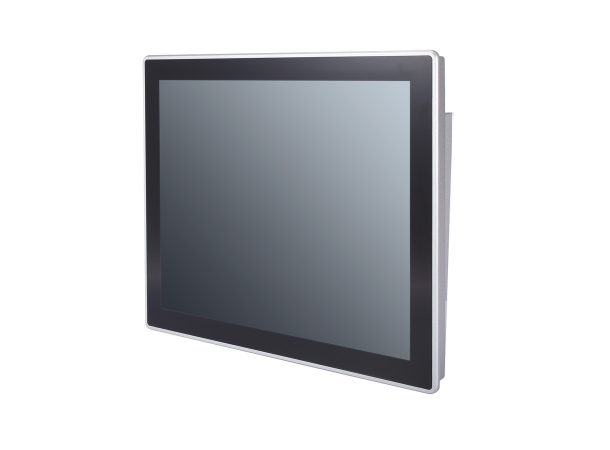

GOT317B-EDS-TRD 17" Panel PC

13/12th Gen. i7/i5/i3 Processor, LGA1700

Product nr: 137139
GOT317B-EDS-TRD 17" Panel PC 13/12th Gen. i7/i5/i3 Processor, LGA1700
got317b-adl-trd.pdf
LCD Panel
  • 17" SXGA TFT LCD
  • 350 nits
  • 1280 x 1024 pixels
CPU
  • LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male RS-232/422/485
  • 1 x RS-232 via cable
USB
  • 2 x USB 3.2 Gen1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
  • 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line out
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion
  • 1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card (USB+PCIe signal)
  • 1 x Flexible IO window; supports COM3 (on board by option)
Others
  • TPM 2.0
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off
  • 1 x Remote power switch
  • 1 x Grounding hole
Touchscreen
  • 5-wire Resistive Touch Screen
Front Bezel
  • IP65 front bezel
Power Supply
  • 12 - 24V DC-in via terminal block
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (35W CPU/SSD)
Relative Humidity
  • 10% - 95% @40°C; non-condensing
Vibration
  • 1G / 5 - 500Hz / operation (SSD, random)
Dimensions
(W x D x H)
  • 398 x 77.5 x 330.4 mm (15.67" x 3.05" x 13")
Weight (net/gross)
  • 11 kg (24.25 Ib) /7.36 Kg (16.22 Ib)
Certifications
  • CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount
