CPU	LGA1700 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 35W)
Chipset	Intel® H610
System Memory	2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x RS-232/422/485 (COM1) 3 x RS-232 (COM2-4)
USB	2 x USB 3.2 Gen1 2 x USB 2.0
Ethernet/PoE	1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V) 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display	2 x HDMI
Digital I/O	1 x 8-CH DIO (4-in/4-out)
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD drive bay (up to 15 mm height)
Expansion	1 x M.2 Key B 2242 (PCIe x2 signal , for storage only) 1 x M.2 Key E 2230 (PCIe x1 & USB 2.0 signal) 1 x Full-size PCI Express Mini Card slot (PCIe x1 & USB 2.0 signal)
Others	TPM 2.0
Power	19 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (14°F to 122°F) (with W.T. SSD/DRAM)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (w/SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	195 x 210.6 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)	3 kg (6.61 lb)/3.6 kg (7.94 lb)
Certifications	CE, FCC Class A, UKCA
EOS Support	Win 10 IoT, Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit

Number of articles found:

INDUSTRIAL PC

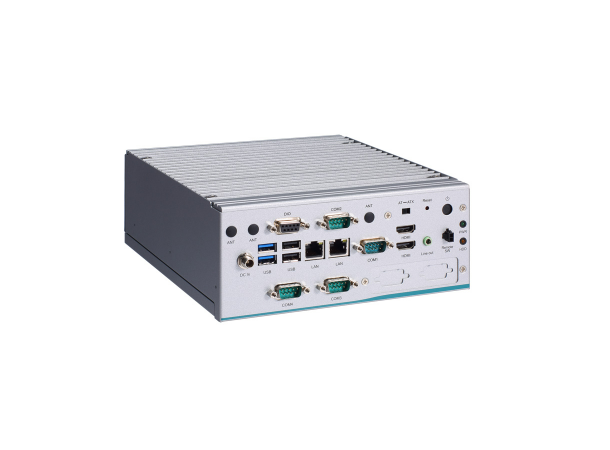

eBOX640A Fanless Box PC

12th Gen i7/i5/i3/Celeron, H610

Product nr: 136399

CPU	LGA1700 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 35W)
Chipset	Intel® H610
System Memory	2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x RS-232/422/485 (COM1) 3 x RS-232 (COM2-4)
USB	2 x USB 3.2 Gen1 2 x USB 2.0
Ethernet/PoE	1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V) 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display	2 x HDMI
Digital I/O	1 x 8-CH DIO (4-in/4-out)
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD drive bay (up to 15 mm height)
Expansion	1 x M.2 Key B 2242 (PCIe x2 signal , for storage only) 1 x M.2 Key E 2230 (PCIe x1 & USB 2.0 signal) 1 x Full-size PCI Express Mini Card slot (PCIe x1 & USB 2.0 signal)
Others	TPM 2.0
Power	19 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (14°F to 122°F) (with W.T. SSD/DRAM)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (w/SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	195 x 210.6 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)	3 kg (6.61 lb)/3.6 kg (7.94 lb)
Certifications	CE, FCC Class A, UKCA
EOS Support	Win 10 IoT, Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit
