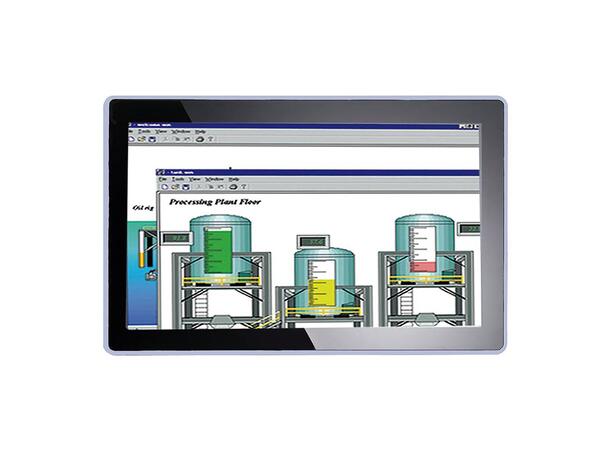

P6187WPC-DC-U-V3 18,5" Touch Monitor

VGA+DVI+HDMI/PCAP Touch/WXGA/24VDC

Product nr: 133455
P6187WPC-DC-U-V3 18,5" Touch Monitor VGA+DVI+HDMI/PCAP Touch/WXGA/24VDC
DatasheetProduct
Front Bezel
  • NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
  • 18.5" WXGA TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 409.8 x 230.4
Max. Resolution
  • 1366 x 768
Backlight
  • LED
Pixel Pitch (mm)
  • 300 x 300
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 170°/160°
Response Time
  • 5ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 450 nits
Display Control
  • OSD (on screen display)
I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DP
  • 1 x HDMI
  • 1 x Power input with terminal block (DC version)
  • 2 x Speaker
Touchscreen
  • Projective capacitive multi-touch
Power Adapter
  • DC Version: 24VDC
Power Comsumption
  • 21W
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Dimensions
(W x D x H)
  • 460 x 53.2 x 285mm (18.11” x 2.09” x 11.22”)
Weight (net/gross)
  • 7.56 kg (16.67 lb)/ 8.92 kg (19.67 lb)
Mounting
  • Panel mount
  • Wall mount
  • Desktop stand
  • VESA mount
Certifications
  • CE
