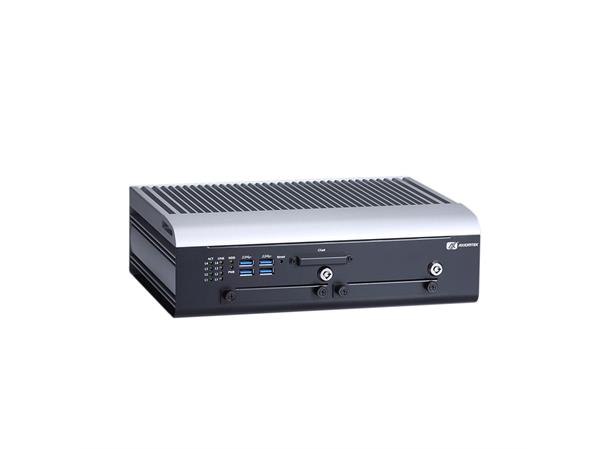

Axiomtek BOX324-894-FL-i5-DIO-TMDC-CAN-GND E26N324115

Fanless marine embedded system with Intel® Core™ i5-7300U 2.6 GHz4 USB VGA DVI-I 4 GbE LANs (RJ-45) 3 COM CAN DIO two 2.5" SATA trays TB 3P DC-in w/ GND 14 ~ 32VDC

DNV 2.4 and IEC 60945 certified.

ACCESSORIES:

8816N3239A0E 3G UC20GKit for tBOX/UST (3G ANT) (E)

8816N3235A0E 3G/GPS UC20GKit tBOX/UST (3G/GPS ANT) (E)

8812C1201A0E AP12356 with WT Wi-Fi kit for tBOX/ICO SFP (E)

881745001A0E GPS Kit M8N w/o adapter for tBOX/UST SFP (E)

88160620BA0E LTE SIMCOM SIM7100 (EU) for tBOX/UST SFP (E)

881745000A0E LTE+GPS SIM7100EU kit for tBOX/UST SFP (E)

8816N5005A0E LTE+GPS SIM7100C (TW) kit tBOX(20) SFP (E)

8816N5007A0E LTE+GPS SIM7100 (JPE) kit tBOX (20) SFP (E)

50906D24000E Adapter 24V/120W, wire only, FSP120-AAAN3

50966224010E Adapter 24V 90W, M12 A-code 5P, FSP090AAAN3

• 7th generation Intel® Core™ i7-7600U 2.8-3.9 GHz
• 7th generation Intel® Core™ i5-7300U 2.6-3.5 GHz
• 7th generation Intel® Core™ i3-7100U 2.4 GHz
• Intel® Celeron® 3965U 2.2 GHz

• SoC integrated

• 2 x DDR4-1866/2133 SO-DIMM, up to 32GB

• AMI

• 2 x 2 x5P TB isolated RS-232/422/485
• 1 x Isolated COM
• 1 x DB9 isolated COM or CANbus (optional)

• 4 x USB 3.0

• 4 x M12 A-coded GbE LAN

• 1 x DVI-I
• 1 x VGA

• 1 x DB9 isolated CANbus (optional)

• 1 x 2 x6P TB isolated DIO 4-in/4-out (optional)

• Mic-in/Line-out

• 2 x 2.5” SATA
• 1 x CFast™

• 3 x full-size PCIe Mini Card slot
• 1 x SIM card slot

• 1 x Remote switch
• 3 x Antenna opening

• 9 - 36 VDC, typical: 12/24 VDC (eMark)
• 14 - 32 VDC, typical: 24 VDC (EN 50155, DNV 2.4)
• 77 - 137.5 VDC, typical: 110 VDC (EN 50155)

• N/A

• 255 levels, 0 ~ 255 secs./mins.

• Aluminum extrusion and heavy-duty steel

• -40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD
• -25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD

• 5% ~ 95%, non-condensing

• 5 Grms w/ SSD (5-500 Hz, X/Y/Z direction; random)
• 1 Grms w/ HDD (5-500 Hz, X/Y/Z direction; random)

• N/A

• 288 x 211 x 85.7 mm (11.33" x 8.3" x 3.37")

• 5 kg (11 lb)/6.5 kg (14.33 lb)

• CE (Class A), FCC, EN 50155, EN50121, E-Mark, ISO 7637, DNV 2.4 certicate
• EN 45545-2, IEC 60945 compliance

• Windowsl® 10, Linux

• DIN rail
• Wall mount
