INDUSTRIAL PC

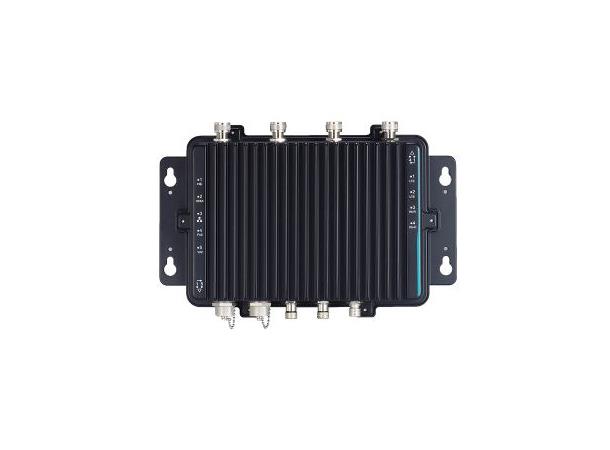

eBOX800-900-FL- NVIDIA Jetson TX2/Pascal

256 Cuda cores/8GB ram/32GB eMMC/IP67

Product nr: 129919
261879 261879 261879
DatasheetProduct
CPU Board
  • NVIDIA® Jetson™ TX2
CPU
  • HMP dual denver 2/2 MB L2 + quad ARM® A57/2 MB L2
GPU
  • NVIDIA® Pascal™, 256 CUDA cores
Chipset
  • SoC integrated
System Memory
  • 8GB 128-bit LPDDR4 @ 1866 MHz onboard
COM
  • N/A
USB
  • 1 x C3 USB 2.0
Ethernet
  • 1 x M12 X-Code GbE LAN
  • 1 x M12 X-Code Gigabit PoE (IEEE 802.3at) port (30W)
Display
  • 1 x C3 HDMI with FHD supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • Onboard 32GB eMMC (via Jetson™ TX2)
  • 1 x M.2 Key M 2280 with PCIe 2.0 x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 4 x N-jack antenna opening with water proof design
Power Supply
  • 100 to 240 VAC with 10kV SPD
Watchdog Timer
  • Watchdog timer embedded in NVIDIA® JETSON™ TX2
Construction
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% to 95% , non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)
  • 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux ubuntu 16.04
Mounting
  • Wall mount
  • VESA mount
