CPU	Intel® Celeron® processor N3160 1.6 GHz Braswell quad-core SoC (2M Cache, up to 2.24 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1333/1600 up to 8 GB
BIOS	AMI
COM	1 x RS-232/422/485 3 x RS-232
USB	3 x USB 3.0 1 x USB 2.0
Ethernet	2 x 10/100/1000Mbps (Intel® i211AT)
Display	1 x HDMI (4K supported) 1 x VGA
Digital I/O	N/A
Audio	MIC-in/Line-out
Storage	1 x 2.5” SATA HDD bay, max. height 15 mm 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal) 1 x SIM slot
Others	3 x Antenna opening
Power Supply	Input AC 90-264V, AC 36W adapter with lock Output: DC 12V@3A
Watchdog Timer	255 levels, 1 ~ 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C ~ +60°C (-4°F ~ +140°F)(with W.T. SSD/DRAM, N3160)
Relative Humidity	10% ~ 95%, non-condensing
Vibration	3 Grms with SSD (5-500Hz, X, Y, Z directions)
Dimensions (W x D x H)	200 x 120 x 46mm (7.87” x 4.72” x 1.81”)
Weight (net/gross)	1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certification	CE
EOS Support	WES7, WE8S, Win10 IoT, Linux
Mounting	Wall mount DIN-rail VESA mount

Number of articles found:

INDUSTRIAL PC

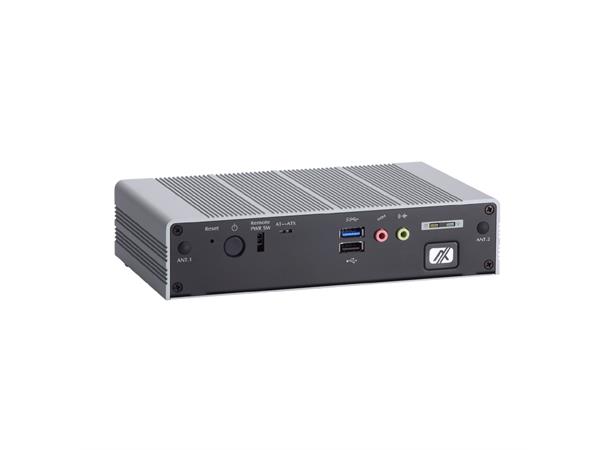

eBOX625-853-FL-N3160

Celeron N3160, no power

Product nr: 129257

CPU	Intel® Celeron® processor N3160 1.6 GHz Braswell quad-core SoC (2M Cache, up to 2.24 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1333/1600 up to 8 GB
BIOS	AMI
COM	1 x RS-232/422/485 3 x RS-232
USB	3 x USB 3.0 1 x USB 2.0
Ethernet	2 x 10/100/1000Mbps (Intel® i211AT)
Display	1 x HDMI (4K supported) 1 x VGA
Digital I/O	N/A
Audio	MIC-in/Line-out
Storage	1 x 2.5” SATA HDD bay, max. height 15 mm 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal) 1 x SIM slot
Others	3 x Antenna opening
Power Supply	Input AC 90-264V, AC 36W adapter with lock Output: DC 12V@3A
Watchdog Timer	255 levels, 1 ~ 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C ~ +60°C (-4°F ~ +140°F)(with W.T. SSD/DRAM, N3160)
Relative Humidity	10% ~ 95%, non-condensing
Vibration	3 Grms with SSD (5-500Hz, X, Y, Z directions)
Dimensions (W x D x H)	200 x 120 x 46mm (7.87” x 4.72” x 1.81”)
Weight (net/gross)	1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certification	CE
EOS Support	WES7, WE8S, Win10 IoT, Linux
Mounting	Wall mount DIN-rail VESA mount
