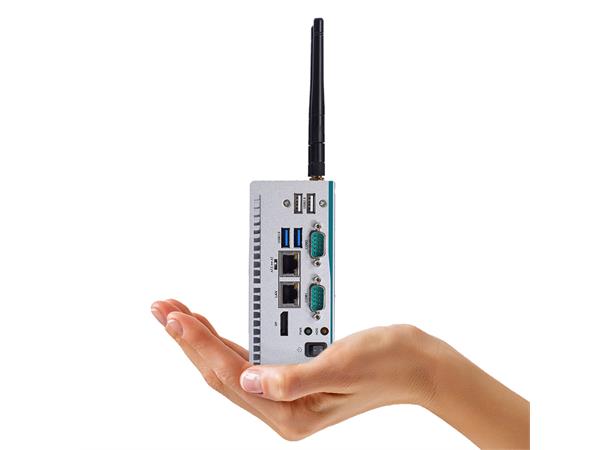

Axiomtek eBOX100-51R-DC-3965U
Fanless ultra-compact embedded system with Intel® Celeron® 3965U, DisplayPort++, 2 COM, 4 USB and 2 GbE LAN
CPU
|
- Intel® Core™ i5-7300U 2.6 GHz
- Intel® Celeron® 3965U 2.2 GHz
|
Chipset
|
|
System Memory
|
- 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
|
BIOS
|
|
COM
|
|
USB
|
|
Ethernet/PoE
|
- 2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT)
|
Display
|
|
Digital I/O
|
|
Audio
|
|
Storage
|
- 1 x M.2 Key B 2242 (for SATA storage)
|
Expansion
|
- 1 x M.2 Key E 2230 (for Wi-Fi)
|
Others
|
- 1 x ATX power switch
- 1 x AT/ATX quick switch
- 1 x Screw type VDC power input connector
- 2 x Antenna opening
|
Power Supply
|
|
Watchdog Timer
|
- 65535 levels, 1 to 65536 sec.
|
Construction
|
- Aluminum extrusion and heavy-duty steel, IP40
|
Operating Temperature
|
- -10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
|
Relative Humidity
|
- 10% to 90%, non-condensing
|
Vibration
|
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
|
Shock
|
- IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
|
Dimensions (W x D x H)
|
- 142 x 87 x 58 mm (5.59" x 3.42" x 2.28")
|
Weight (net/gross)
|
- 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
|
Certifications
|
|
EOS Support
|
|
Software Support
|
|
Mounting
|
- Wall mount kit
- Din-rail kit
- VESA mount Kit
|
