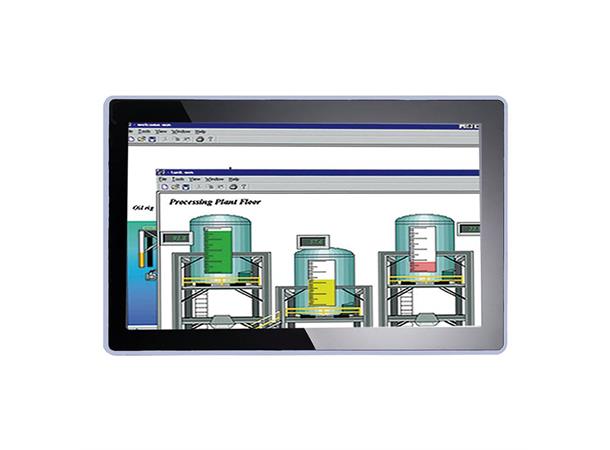

P6187W 18,5" LCD Monitor
1366*768, 24VDC, PCAP Touch
Front Bezel
NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
18.5" WXGA TFT LCD
Max Colors
16.7M
Active Area (mm)
409.8 x 230.4
Max. Resolution
1366 x 768
Backlight
LED
Pixel Pitch (mm)
300 x 300
Backlight MTBF (hrs)
50,000 hrs
Viewing Angle (H/V)
170°/160°
Response Time
5ms
Contrast Ratio
1000 (TYP.)
LCD Brightness (cd/m²)
450 nits
Display Control
OSD (on screen display)
I/O Connectors
1 x USB for touchscreen version
1 x Audio (Line-in)
1 x VGA
1 x DisplayPort
1 x HDMI
1 x Power input with terminal block (DC version)
Touchscreen
Projective capacitive multi-touch
Audio
2 x Speaker
Power Adapter
24VDC
Power Comsumption
21W
Operating Temperature
0°C to +50°C (+32°F to +122°F)
Dimensions
(W x D x H)
460 x 53.2 x 285mm (18.11” x 2.09” x 11.22”)
Weight (net/gross)
7.56 kg (16.67 lb)/ 8.92 kg (19.67 lb)
Mounting
Panel mount
Wall mount
Desktop stand
VESA mount
Certifications
CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
Accessories
P6187W Panel Mount Kit
Alternatives
P6157W 15,6" LCD Monitor
