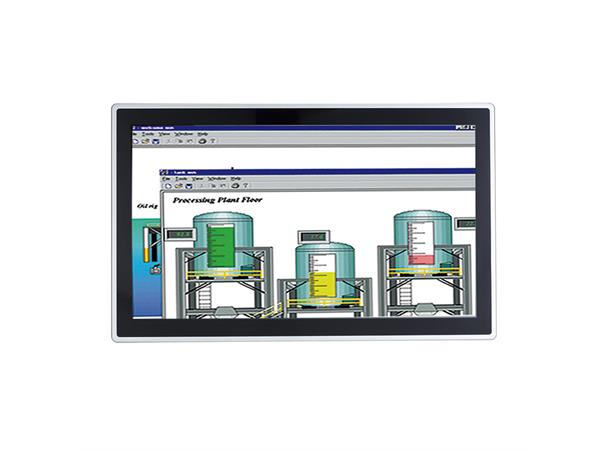

GOT315WL-845-PCT-DC 15,6" Panel PC

Pentium N3710/PCTouch/24VDC

Product nr: 125628
GOT315WL-845-PCT-DC 15,6" Panel PC Pentium N3710/PCTouch/24VDC
Datablad
LCD Panel
  • 15.6" WXGA TFT
  • 400 nits
  • 1366 x 768 pixels
CPU
  • Intel® Pentium® processor N3710 1.6 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i217LM & i210AT)
Display
  • N/A
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card slot with mSATA
  • 1 x full-size PCI Express Mini Card slot with SIM
Others
  • 1 x switch for power on/off (ATX)
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 24 VDC
Power Comsumption
  • 72 W
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ +40°C; non-condensing
Vibration
  • 1G, 10 ~ 500 Hz, random for 2.5" SATA HDD
Dimensions
(W x D x H)
  • 396.8 x 59.0 x 247.1 mm (15.62" x 2.3" x 9.73")
Weight (net/gross)
  • 4.5 kg (9.9 lb)/6.5 kg (14.3 lb)
Certificate
  • CE
EOS
  • Windows® 10 IoT Enterprise (64-bit), Windows® 10 (64-bit)
Mounting
  • Panel mount
  • VESA arm
  • Desktop stand
  • Wall mount
