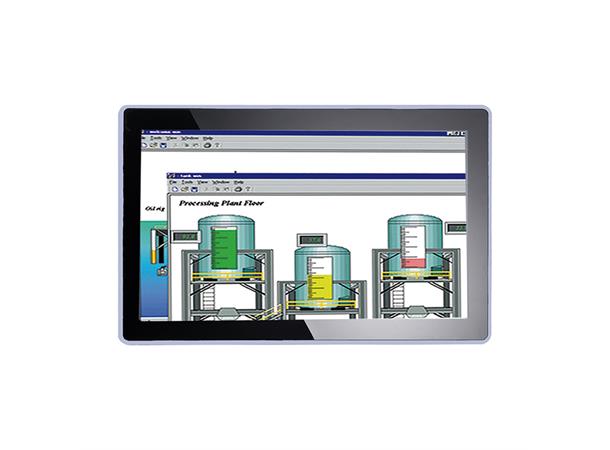

P6157W 15,6" LCD Monitor
P6157W 15,6" LCD Monitor
1366*768, 24VDC, PCAP Touch
Product nr:
125317
Add to wish list
p6157w-v3.pdf
Description
Support
Front Bezel
NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
15.6" WXGA TFT LCD
Max Colors
16.7 M
Active Area (mm)
344.232 x 193.536
Max. Resolution
1366 x 768
Backlight
LED
Pixel Pitch (mm)
0.252 x 0.252
Backlight MTBF (hrs)
50,000 hrs
Viewing Angle (H/V)
170°/160°
Response Time
8 ms
Contrast Ratio
500 (TYP.)
LCD Brightness (cd/m²)
400 nits
Display Control
OSD (on screen display)
I/O Connectors
1 x USB for touchscreen version
1 x Audio (Line-in)
1 x VGA
1 x DisplayPort
1 x HDMI
1 x Power input with screw type connector
(AC version)
1 x Power input with terminal block (DC version)
Audio
2 x Speaker
Touchscreen
Projective capacitive multi-touch
Power Adapter
AC version: 100 - 240 VAC-DC, 12V3A,
36W power adapter
DC version: 24 VDC
Power Comsumption
17W
Operating Temperature
0°C to +50°C (+32°F to +122°F)
Dimensions
(W x D x H)
396.8 x 54 x 247.1 mm (15.62" x 2.13" x 9.73")
Weight (net/gross)
4.1 kg (9.1 lb)/6.1 kg (13.44 lb)
Mounting
Panel mount
Wall mount
Desktop stand
VESA arm
Certifications
CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
Producer
Support
p6157w-v3.pdf
Alternatives
Accessories
P6187W 18,5" LCD Monitor
1366*768, 24VDC, PCAP Touch
Panel Mount Kit for P6157W
