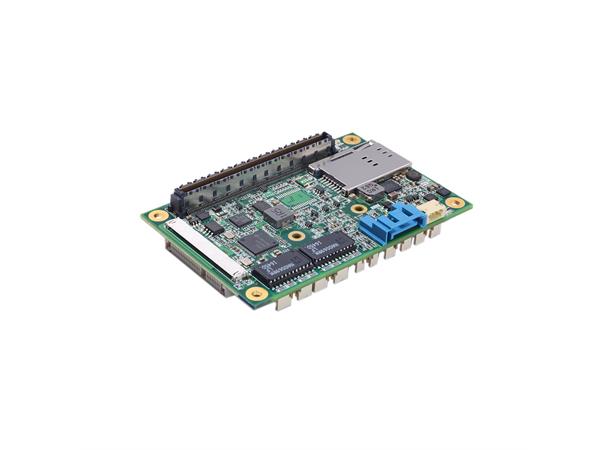

CEB94018 COM Express Mini Carrier board

Axiomtek. Type 10, w/o cables

Product nr: 122416

CPU	On the module
Chipset	On the module
System Memory	On the module
BIOS	On the module
COM	2 x RS-232 TX/RX/RS-422/RS-485
USB	6 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i210IT) 1 x 10/100/1000 Mbps signals routed from CPU module
Display	1 x LVDS 1 x VGA
Digital I/O	4-IN & 4-OUT
Audio	HD audio with Line-out/MIC-in
Storage	1 x SATA-600
Expansion	2 x Half-size PCI Express Mini Card slot 1 x SIM card slot
Others	1 x I2C 1 x SMBus
Battery	N/A
Power Input	AT: +5V or +9V ~ +14V DC-in
Watchdog Timer	On the module
Hardware Monitoring	Yes
Operating Temperature	-40ºC ~ +85ºC (-40ºF ~ +185ºF)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	244 x 291 mm
Board Thickness	2.0 mm
Certificate	CE
