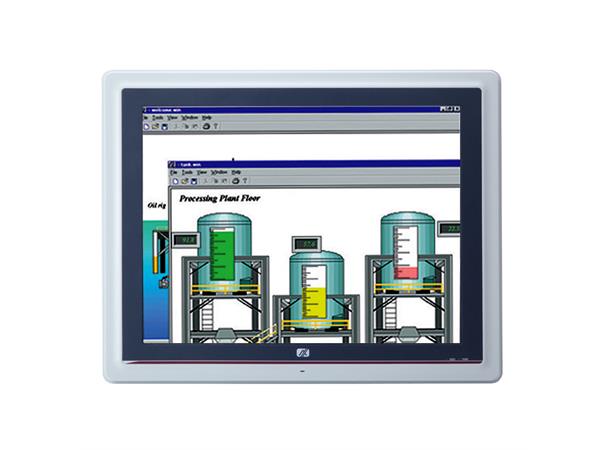

GOT5152T-845 J-US 15" Panel PC

N3060, Res. touch, AC

Product nr: 122100
GOT5152T-845 J-US 15" Panel PC N3060, Res. touch, AC
Datasheet
LCD Panel
  • 15" XGA TFT LCD with LED backlight
  • 450 nits
  • 1024 x 768
CPU
  • Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232-422-485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x HDMI
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card with mSATA
  • 1 x full-size PCI Express Mini Card with SIM slot
Others
  • 1 x 8-bit DIO port (programmable, DB9)
  • 1 x switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 24 VDC overcurrent protection fuse
  • AC version: 100 ~ 240 V AC-DC, 60W power adapter
Power Comsumption
  • 32 W
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ +40°C; non-condensing
Vibration
  • 2G, 10 ~ 500Hz, random for SS
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7 mm (15.27" x 2.14" x 12.11")
Weight (net/gross)
  • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certificate
  • CE
EOS
  • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand
