INDUSTRIAL PC

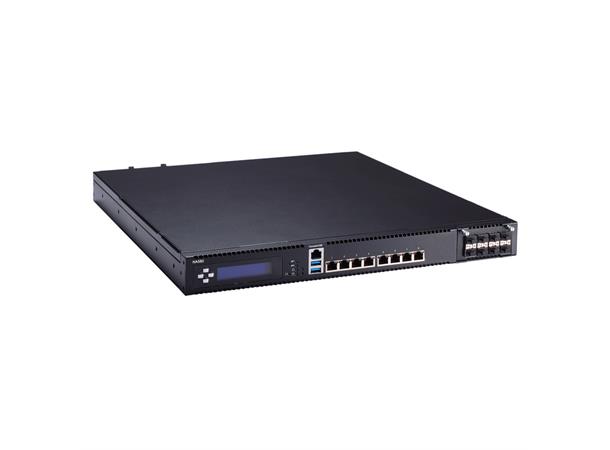

NA580-R8GI-C236 1U Network Appliance

C236 chipset/LGA1151/8x LAN

Product nr: 121614
70188
Form Factor
  • 1U rack-mount
CPU
  • LGA1151 socket Intel® Xeon® E3/ Core™ family processor (Skylake)
Chipset
  • Intel® C236/H110
System Memory
  • Intel® C236: 4 x DDR4-2400 U-DIMM non-buffer non-ECC/ECC memory, up to 64GB
  • Intel® H110: 2 x DDR4-2400 U-DIMM non-buffer non-ECC/ECC memory, up to 32GB
BIOS
  • AMI
Ethernet
  • Intel® C236: 8 x 10/100/1000 Mbps (Intel® i210)
    10 x 10/100/1000 Mbps (optional)
    8 x RJ-45 + 2 x SFP (optional)
  • Intel® H110: 6 x 10/100/1000 Mbps (Intel® i210)
    1 x LAN module (optional), max. up to 18 LANs
LAM Bypass
  • 2 pairs
LAN Module
  • 1 x LAN module (optional), up to 18 LANs
Storage
  • 2 x 2.5" SATA HDD
  • 1 x CFast™
  • 1 x mSATA
  • 1 x 3.5" SATA HDD (optional for 270 W ATX power supply only)
Expansion
  • 1 x PCIe x8 (Intel® C236 only) through AX96708 (83967081010E) riser card
I/O Interface
  • 1 x RS-232 (RJ-type)
  • 2 x USB 3.0
  • 8 x RJ-45 LAN ports
Power Supply
  • 270W ATX power supply
  • 280W 1U redundant power supply (optional)
LCM Module
  • Yes
Operating Temperature
  • 0°C ~ +45°C (32°F ~ +113°F) (270 W ATX power supply)
  • 0°C ~ +40°C (32°F ~ 104°F) (280 W 1U redundant power supply)
Dimensions
(W x D x H)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross)
  • 8.5 kg (18.74 lb)/9.8 kg (21.61 lb)
OS
  • Linux Kernel
Certifications
  • FCC class A/CE class A
