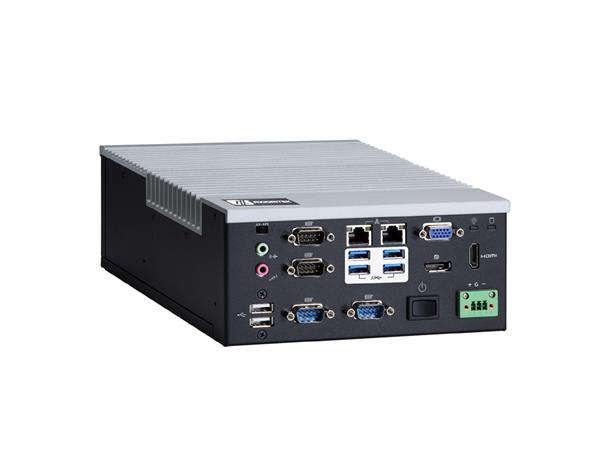

INDUSTRIAL PC

eBOX640-500-FL-DC

H110, 7th/6th Gen. Core,10-30VDC

Product nr: 121496
69933
CPU
  • 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
Chipset
  • Intel® H110
System Memory
  • 2 x 288-pin DIMM DDR4-2133, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 3 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000Mbps (Intel® i219LM & i211AT)
Display
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x VGA
Digital I/O
  • N/A
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5” SATA HDD bay
  • 1 x mSATA
Expansion
  • 1x full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal)
  • 1 x SIM slot
Others
  • 1 x 10~30 VDC power input connector
  • 1 x AT/ATX quick switch
  • 2 x SMA type connector opening for antenna
  • 1 x ATX power switch
Power Supply
  • 10~30 VDC
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C ~ +55°C (14°F ~ +131°F ) (with W.T. DRAM & SSD)
Relative Humidity
  • 10% ~ 90%, non-condensing
Vibration
  • 2 Grms with SSD (5-500 Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 182 x 230 x 82 mm (7.16" x 9.05" x 3.23")
Weight (net/gross)
  • 3 kg (6.61 lb)/3.6 kg(7.94 lb)
Certification
  • CE, FCC class A
EOS Support
  • Win10 IoT, WE8S
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount
