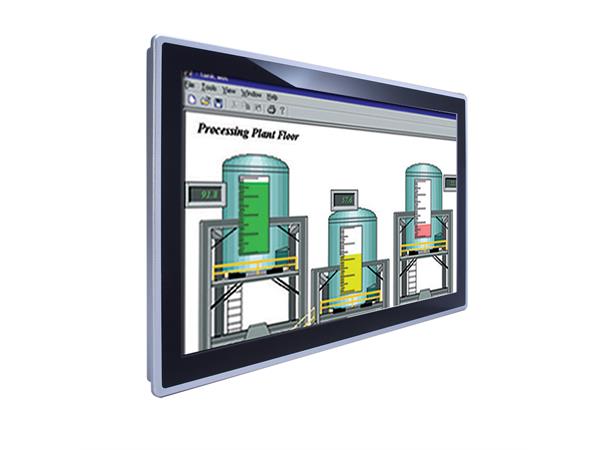

GOT3187WL-834-PCT-J-US 18,5" Panel PC

Celeron J1900/PCTouch/AC

Product nr: 121365
GOT3187WL-834-PCT-J-US 18,5" Panel PC Celeron J1900/PCTouch/AC
Datasheet
LCD Panel
  • 18.5" WXGA TFT LCD
  • 250 nits
  • 1366 x 768
CPU
  • Intel® Celeron® processor J1900 4C @2.0 GHz (Bay Trail-D)
Chipset
  • SoC Integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600 up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps
Display
  • N/A
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD
  • 1 x CFast™ or 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA
  • 1 x Full-size PCI Express Mini Card with SIM slot
Others
  • 1 x switch for power on/off (ATX)
  • WLAN antennas
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • DC version: 12-36VDC
  • AC version: 12VDC 60W adapter
Power Comsumption
  • 48W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Relative Humidity
  • 20% ~ 90% @ 40°C; non-condensing
Vibration
  • 1G, 10 ~ 500Hz, random for CFast™
Dimensions
(W x D x H)
  • 460.8 x 58.5 x 285 mm (18.11" x 2.3" x 11.22")
Weight (net/gross)
  • 5.8 kg (12.8 lb)/8.2 kg (18.1 lb)
Certification
  • CE
EOS
  • Windows® 8.1, WE 8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • VESA arm
  • Desktop stand
  • Wall mount
