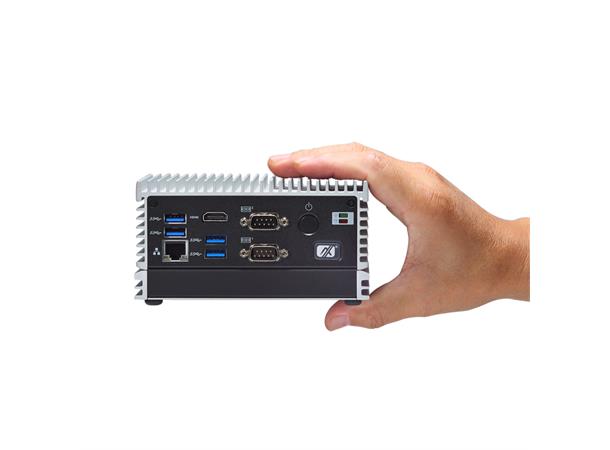

eBOX565-500-FL-6300U-DC

Axiomtek. i5-6300U, 9-36VDC

Product nr: 121322
69894
Datablad
CPU
  • 6th generation Intel® Core™ i5-6300U 2.4 GHz & Celeron® 3955U 2.0 GHz, Skylake ULT SoC
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pinSO-DIMM DDR4-2133, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps
Display
  • 2 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5” SATA HDD drive bay
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card (USB + PCI Express signal)
Others
  • 2 x SMA type connector opening for antenna
  • 1 x AT/ATX quick switch
  • 1 x ATX power switch
  • 1 x Reset button
Power Supply
  • 9~36 VDC
Watchdog Timer
  • 255 levels, 1~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C ~ +50°C (14°F~+122°F) (with W.T. SSD)
Relative Humidity
  • 10% ~ 95% , non-condensing
Vibration
  • 3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 141.6 x 106 x 73 mm (5.57" x 4.17" x 2.87")
Weight (net/gross)
  • 1.074 kg (1.76 lb)/1.67 kg (3.68 +lb)
Certification
  • CE
EOS Support
  • Win10, WE8S, WES7, Linux
Mounting
  • Wall mount
  • Din-rail
  • VESA mount
