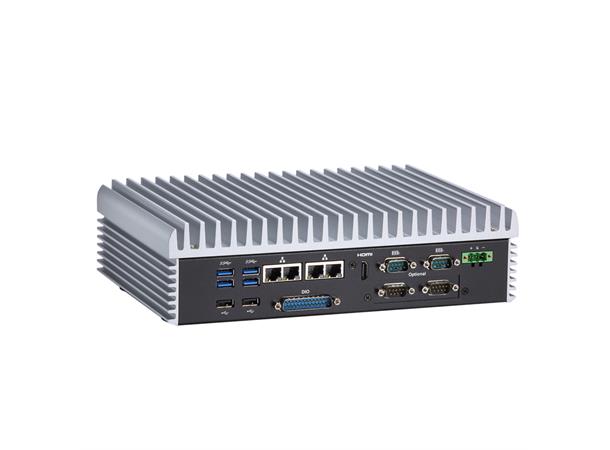

eBOX670-891-FL-DC

Q170, 7th/6th gen Core, 4x Lan, 9-36VDC

Product nr: 121293
69813
CPU
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
Chipset
  • Intel® Q170
System Memory
  • 2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
BIOS
  • AMI
COM
  • 4 x RS-232/422/485
USB
  • 6 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Display
  • 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b)
  • 1 x DisplayPort
Digital I/O
  • 32-channel programmable DI/DO
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5" SATA HDD with RAID 0&1
  • 1 x CFast™
  • 1 x mSATA
Expansion
  • 2 x Full-size PCI Express Mini Card (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 4 x SMA type connector opening for antenna
  • 1 x 9~36VDC power input connector
  • 1 x ATX power switch
  • 1 x Remote power switch
  • 1 x AT/ATX quick switch
  • 1 x Reset button
Power Supply
  • 9 - 36VDC
Watchdog Timer
  • 255 levels, 1 ~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
Relative Humidity
  • 10% ~ 95% , non-condensing
Vibration
  • 3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
Weight (net/gross)
  • 3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
Certificate
  • CE
EOS Support
  • WE8S, WES7, Win10 IoT, Linux
Mounting
  • Wall mount
  • DIN-rail
