CPU | - Intel® Atom® E3845 4C @1.91 GHz, TDP: 10W
- Intel® Atom® E3827 2C @1.75 GHz, TDP: 8W
|
Chipset | |
System Memory | - 4 GB DDR3L-1333 memory onboard
|
BIOS | |
COM | - 2 x DB9 serial console or RS-232/422/485
|
USB | |
PoE | |

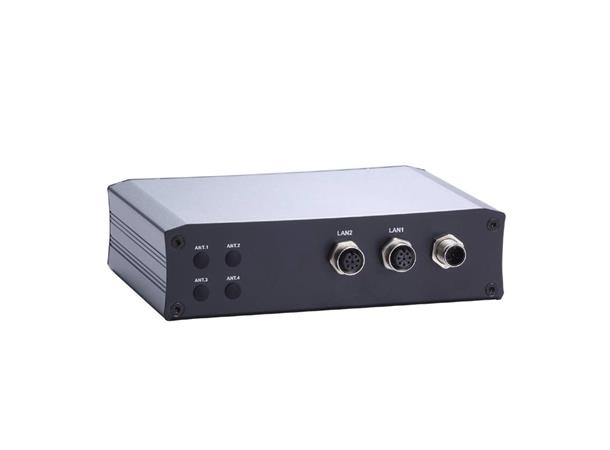

Ethernet | - Railway: 2 x M12 A-coded 10/100/1000 Mbps Ethernet (Intel® i210-IT)
- Marine/Vehicle: 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® i210-IT)
|
Display | - 1 x VGA (supports up to 1920 x 1080 @60Hz)
|
CANbus | |
Digital I/O | - 1 x DB9 8-bit programmable DIO
|
Audio | - 1 x Mic-in, 1 x Line-out, 1 x Line-in (optional, occupied 1 x PCIe Mini Card
- slot)
|
Storage | - 1 x Internal 2.5" SATA drive (9.5 mm height)
- 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
|
Expansion | - 1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
- 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
|
Others | - 1 x Reset button
- 1 x Remote switch
- 4 x Antenna opening
|
Power Supply | - Railway: 1 x M12 DC-in, 9 to 36 VDC (typical: 24VDC)
- Vehicle: 1 x terminal block DC-in, (typical: 12/24 VDC) with ACC ignition
- Marine: 1 x terminal block /M12 DC-in, 9 to 36 VDC (typical: 24 VDC)
|
Power Consumption | |
Watchdog Timer | - 255 levels, 1 to 255 sec.
|
Construction | - Aluminum extrusion and heavy-duty steel, IP40
|
Operating Temperature | - -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
Relative Humidity | - 0% to 95%, non-condensing
|
Vibration | - 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
- MIL-STD-810G, Method 514.6C-VI Category 4 compliant
- EN 50155 EN (IEC) 61373 category 1 class B
- DNV 2.4/IEC 60945 IEC 60068-2-6
|
Shock | - EN 50155: EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
- DNV 2.4: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30
|
Dimensions (W x D x H) | - 164.1 x 108 x 44 mm (6.46" x 4.25” x 1.73”)
|
Weight (net/gross) | - 0.77 kg (1.70 lb)/2 kg (4.41 lb)
|
Certifications | - CE (Class A), FCC (Class A), EN 50155, EN 45545-2, E-Mark, DNV 2.4 and IEC 60945 certified
|
EOS Support | - Windows® 10 64-bit, Windows® 8, Windows® 7 64/32-bit, VxWorks7, Ubuntu 15.10
|
Software Support | |
Mounting | |
