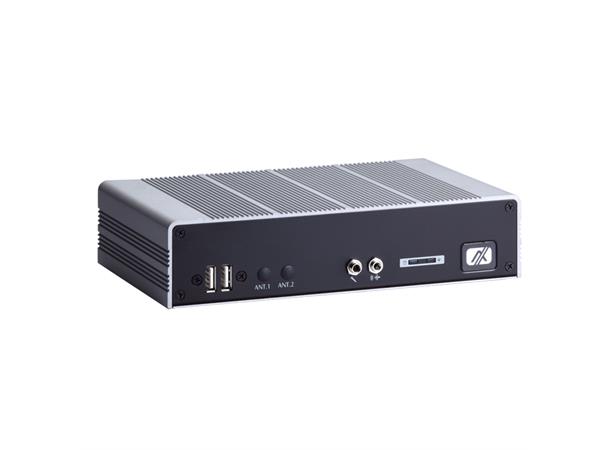

eBOX625-842-FL-J1900-2.0G-EU

Axiomtek. J1900 2GHz

Product nr: 118512
eBOX625-842-FL-J1900-2.0G-EU Axiomtek. J1900 2GHz



  • CPU
    • Intel® Celeron® J1900 2.0GHz
    Chipset
    • SoC Integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1066/1333 up to 8GB
    BIOS
    • AMI
    COM
    • 2 x RS-232/422/485
    USB
    • 4 x USB 2.0
    Ethernet
    • 2 x 10/100/1000Mbps
    Display
    • 1 x VGA
    • 1 x HDMI
    Digital I/O
    • 8 channel programmable digital I/O (J1900 version only)
    Audio
    • Mic-in/Line-out
    Storage
    • 1 x 2.5” SATA HDD
    • 1 x mSATA
    Expansion
    • 1 x Full-size PCI Express Mini Card (USB + PCI Express signal)
    • 1 x Half-size PCI Express Mini Card (USB + PCI Express signal)
    Others
    • 3 x SMA type connector opening for antenna
    • 1 x SIM slot
    Power Supply
    • Input AC 90-264V, AC 36W adapter with lock
    • Output: DC 12V @ 3A
    Watchdog Timer
    • 255 levels, 1~255 sec.
    Construction
    • Aluminum extrusion and heavy-duty steel, IP40
    Operating Temperature
    • -20°C ~ +55°C (-4°F ~ +131°F ) (with J1900, W.T. SSD/CAPA842)
    Relative Humidity
    • 10% ~ 90% , non-condensing
    Vibration
    • 3 Grms w/ SSD (5-500Hz, X, Y, Z directions)
    Dimensions
    (W x D x H)
    • 200 x 120 x 46 mm (7.87” x 4.72” x 1.81")
    Weight (net/gross)
    • 1.1kg(2.43lb)/ 1.8kg(3.97)
    Certification
    • CE
    EOS Support
    • WES8, WES7
    Mounting
    • Wall mount
    • DIN-rail
    • VESA mount
