INDUSTRIAL PC
You are here: Hatteland Technology   >   Produkter   >   INDUSTRIAL COMPUTING   >   Industrial PC   >   Box/compact Computers   >   For DIN-Rails   >   rBOX510-6COM

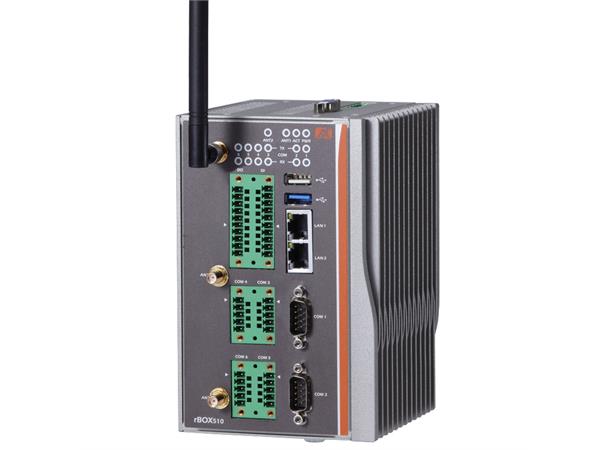

rBOX510-6COM

E3827 1,75GHz, Din-rail

Product nr: 118198
67439
Datablad
  • CPU
    • Intel® Atom™ Processor E3827 (1.75GHz)
    Chipset
    • SoC Integrated
    System Memory
    • DDR3L 4GB onboard
    COM
    • 2 x RS-232/422/485
    • 4 x isolated RS-232/422/485
    USB
    • 1 x USB 3.0
    • 1 x USB 2.0
    Ethernet
    • 2 x isolated 10/100/1000Mbps
    PoE
    • N/A
    CANbus
    • N/A
    Digital I/O
    • 1 x isolated DIO (8-IN/8-OUT)
    Display
    • 1 x VGA
    Wireless
    • 3 x Mini Card
    • 2 x SIM card socket
    • 3 x Antenna
    Storage
    • 1 x CompactFlash™
    • 1 x 2.5" SATA SSD (or 1 X mSATA)
    Others
    • Battery onboard & gold capacity onboard
    • Supports AXView 2.0
    Power Supply
    • 12~48V DC-In
    Watchdog Timer
    • 2 WDT
    • WDT 1: one step is 1 sec, 255 levels
    • WDT 2: one step is 1 sec/ 1 min, 255 levels
    Construction
    • Extruded aluminum and heary-duty steel, IP30
    Operating Temperature
    • -40°C ~ +70°C (-40°F ~ +158°F)
    Relative Humidity
    • 10% ~ 95%
    Vibration
    • 5G @ 10-150Hz, amplitude 0.35ms
    Dimensions
    (W x D x H)
    • 100.6 x 110 x 135 mm (3.96" x 4.33" x 5.31")
    Weight (net/gross)
    • 1.5 kg (3.3 lb)/1.88 kg (4.14 lb)
    Certifications
    • Heavy Industrial CE
    • FCC Part 18
    • EN50121-4 (Railway application)
    • UL60950-1
    EOS
    • Windows 7 Embedded, Windows 8 Embedded, Linux support package
    Mounting
    • Din rail
    • Wall mount
