Aplex ViTAM-917DR

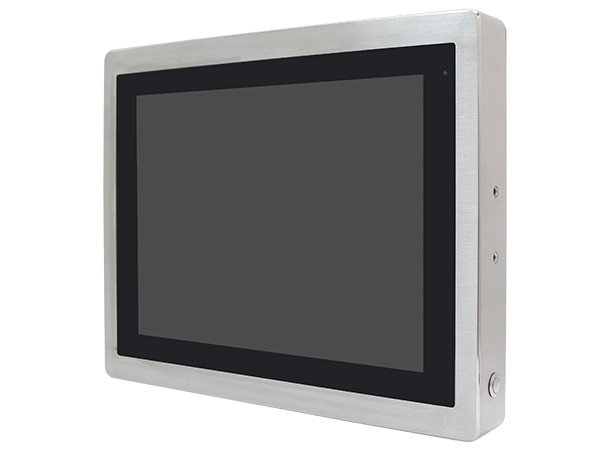

17" Fanless Industrial Stainless Steel Panel PC with 12th Gen Intel Core i3/i5 CPU. Total IP66/IP69K
Note that there is no RAM or storage included, if you need this added please contact sales.

Specification

System
CPU: Intel Core i3-1215U (Standard), Option i5-1235U
Memory: 2x260-pin SO-DIMM up to 64GB DDR4 3200 MHz
TPM: TPM 2.0

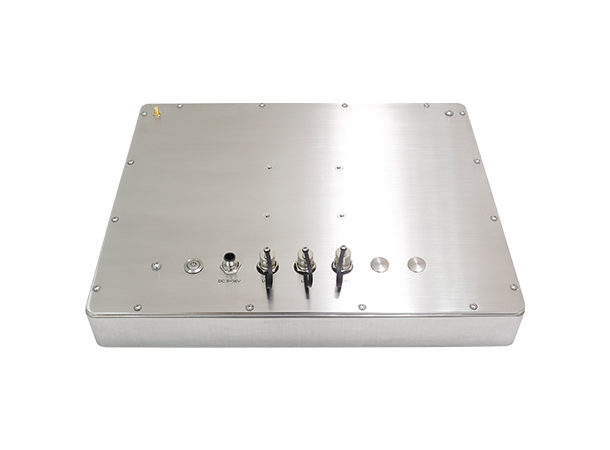

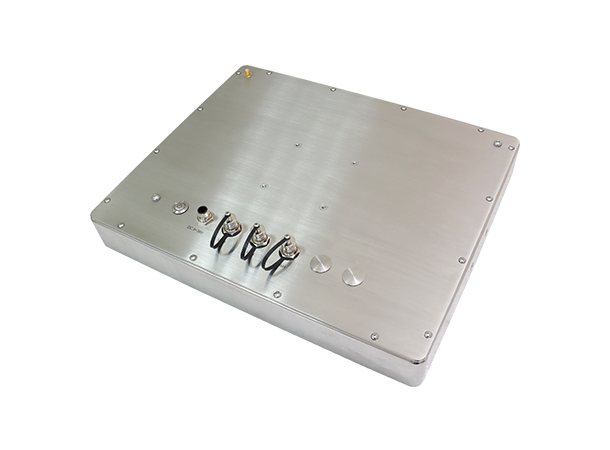

IO Ports
1x M12 8-pint for LAN with waterproof cover
1x M12 3-pin for DC Power with waterproof cover
1x Power switch on rear
1x Touch on/off button at the side
1x M12 8-pin Com1, RS-232/422/485, Default RS-232, with waterproof cover
1x M12 8-pin for USB 2.0 with waterproof cover
For more I/O options, please see datasheet

Storage
1x M.2 M-Key 2280 (PCIe x4)

Expansion
1x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1) for optional LTE/5g module
1x M.2 2230 E-key (USB2.0, PCIe x2) for optional WiFi/BT Module
1x Nano-SIM card

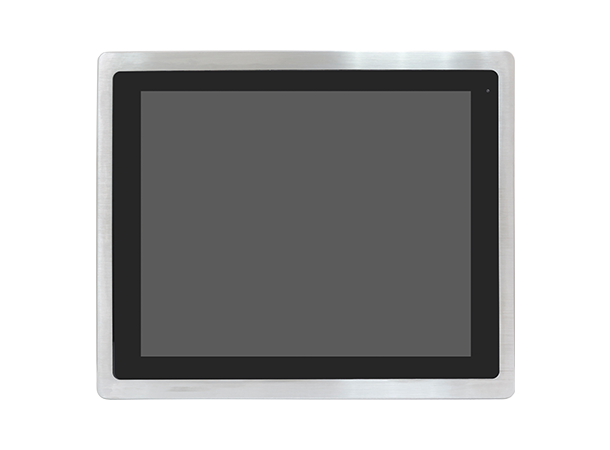

Display
Display type: 17" TFT-LCD
Resolution: 1280x1024
Brightness: Standard is 350cd/m2, can upgrade to high brightness 1000cd/m2
Touch: Resistive Touch
MTBF: 30,000h

Power
9-36VDC Input


For more information please see datasheet or contact sales.
