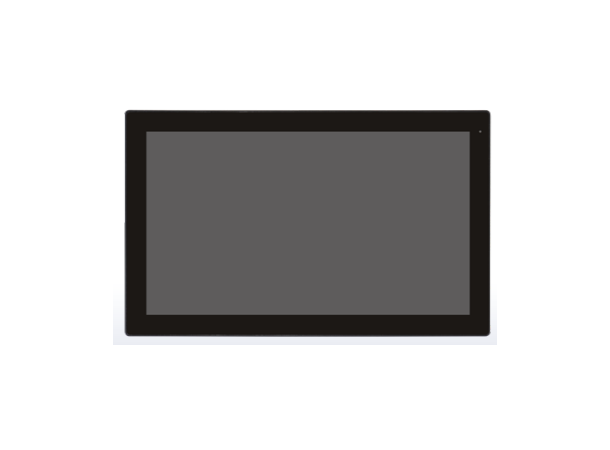

Aplex AUHMI-921CP

21.5" Fanless Industrial compact size panel pc with 11th gen Intel Core i3 Processor.
Note that there is no RAM or storage included, if you need this added please contact sales.

Specification

System
CPU: intel Core i3-1115G4E
Memory: 2x260-pin SO-DIMM up to 64GB DDR4 3200 MHz
TPM: TPM 2.0

IO Ports
4x USB 3.0 Type A
1x DB-9 connector, including: 1 x RS-232(RTS, Rx, Tx, CTS),
   pin1 RTS/5V/12V selectable via jumper (COM1)
   1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
1x Audio Line Out
1x DP/HDMI
1x 1GbE, 1x 2.5GbE LAN RJ45
1x 3-pin Terminal block connector
1x 3-pin power switch connector

For more I/O options, please see datasheet

Storage
1x M.2 M-Key 2280 (PCIe/SATA3)

Onboard Expansion
1x Mini-PCIe slot (Full size)
1x M.2 E key for Wifi/BT Module
1x Nano SIM slot

Display
Display type: 21,5" TFT-LCD
Resolution: 1920x1080
Brightness: Standard is 250cd/m2, can upgrade to high brightness 1000cd/m2
Touch: PCAP Touch
MTBF: 50,000

Power
9-36VDC Input


For more information please see datasheet or contact sales.
