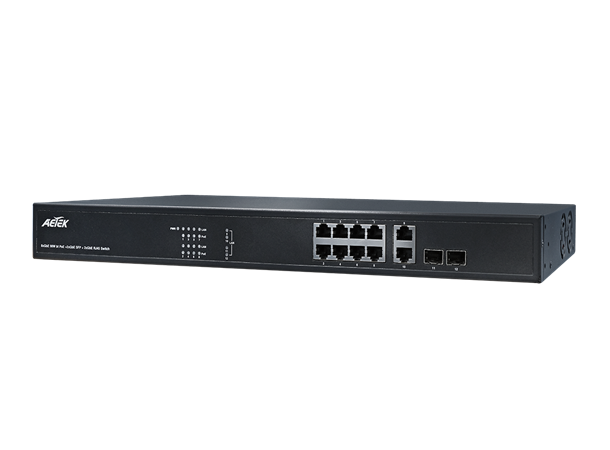

The C42 series of Unmanaged 90w bt PoE Switches are designed with 6KV PoE Ethernet port surge protection. Besides enabling connections of PoE af/at PDs, C42 series is specially designed for latest PoE bt PoE(>25.5W) PDs such as IR PTZ cameras, multi-sensor cameras, and long range PoE applications. The C42 series provide multi-port Gigabit PoE (10M/100M/1G) delivering data and power to PoE PDs over a single network cable as well as additional SFP transceiver slots for flexible uplink. The C42 series has two sub-models classified as easy-to-install power source equipment (PSE) and provide power up to 30W/60W/90W per port.

770W Power Budget
IEEE 802.3bt/at/af Output
Flexible SFP transceiver ports for uplink
Supports 10/100/1000Mbps data rates
Support Auto-MDI/MDIX
Built-in 6KV surge protection for each PoE port
IEEE 802.3az Energy Efficient Ethernet standard for green power
19" Rackmount installation
