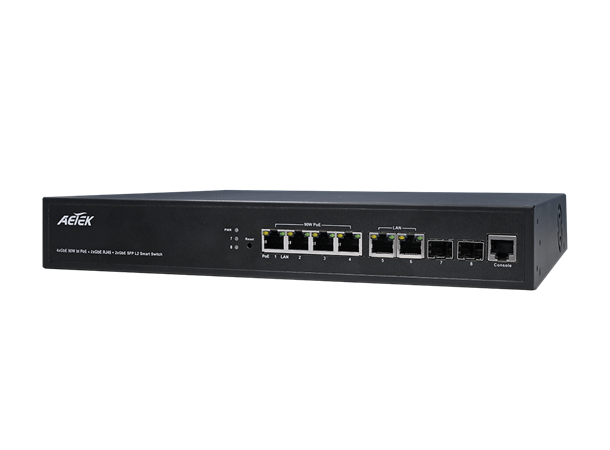

The C62 series from AETEK offers a broad range of NTS L2 PRO Managed PoE Switches, equipped with multi-port Gigabit PoE (10M/100M/1G) and SFP transceiver (100M/1G) slots for flexible link. The C62 series has two sub-models including 4 ports and 8 ports complying with IEEE 802.3bt/at/af standards with sufficient PoE power budget for any application.

Besides a NTS L2 PRO Managed PoE switch, C62 series is also an IP camera controller specially designed for easy overview & management of IP cameras complying with ONVIF, even if installers is not familiar with advanced software of NTS L2 PRO Managed PoE switch. A centralized Web GUI (Graphic User Interface) makes it easy to find cameras and generate topology automatically once ONVIF IP cameras are connected to C62 series. Meanwhile, installers can easily catch comprehensive individual camera information including camera list, IP/MAC address, topology, power consumption, and traffic monitoring thru web browser.

Layer 2 Switch
802.1d (STP), 802.1w (RSTP), 802.1s (MSTP)
Loop protection
SNMP v1/v2c/v3
QoS
VLAN
Ethernet cable length measurement
DHCP Server
Network Topology System
Automatic discovery for ONVIF camera
Generates camera topology map automatically
Cable diagnostic & reboot camera remotely
PoE management
Topology view / Floor view / Google map
Monitor / Configure / Manage ONVIF camera thru web
Flexible SFP transceiver ports for uplink
Supports 10/100/1000Mbps data rates
Support Auto-MDI/MDIX
Built-in 6KV surge protection for each PoE port
IEEE 802.3az Energy Efficient Ethernet standard for green power
19" Rackmount installation
