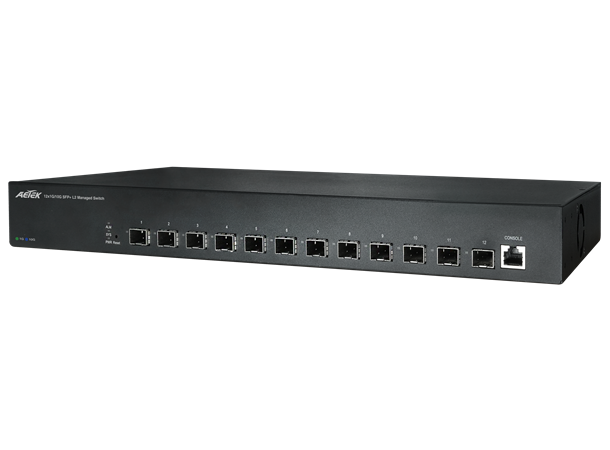

The C60-00B-01 is NTS 10G L2 Managed Switch, designed as a root switch to manage outdoor H60 series or industrial D60 series or indoor C60 series PoE Switch, enable them to the IP surveillance network.

The C60-00B-01 provides 12-port 10G SFP+. Besides a NTS L2 Managed switch, C60-00B-01 is also an IP camera controller specially designed for easy overview & management of IP cameras complying with ONVIF, even if installers is not familiar with advanced software of NTS L2 Managed switch. A centralized Web GUI (Graphic User Interface) makes it easy to find cameras and generate topology automatically once ONVIF IP cameras are connected to C60-00B-01. Meanwhile, installers can easily catch comprehensive individual camera information including camera list, IP/MAC address, topology, power consumption, and traffic monitoring thru web browser.

Layer 2 Switch
802.1d (STP), 802.1w (RSTP), 802.1s (MSTP)
Loop protection
SNMP v1/v2c/v3
QoS
VLAN
Ethernet cable length measurement
DHCP Server
Network Topology System
Automatic discovery for ONVIF camera
Generates camera topology map automatically
Cable diagnostic & reboot camera remotely
PoE management
Topology view / Floor view / Google map
Monitor / Configure / Manage ONVIF camera thru web
Support Auto-MDI/MDIX
IEEE 802.3az Energy Efficient Ethernet standard for green power
19" Rackmount installation
