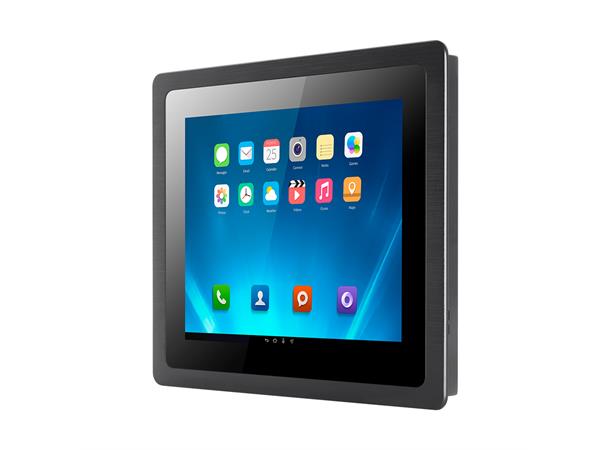

TPC104-RK3399 10,4"Android Panel-PC
Thin 3mm Bezel perfect for panel-mounting, for example in a cabinet door.
Available in multiple sizes (10,1-23,8" some details may differ)
Internals
- Industrial motherboard for a long lifespan
- JWS3399-MAIN-L
- CPU: 1,8GHz Dual-Core ARM Cortex-A72 + Quad-core ARM Cortex-A53
- 4GB RAM, 32GB eMMC
- 10,4” 4:3 LCD screen HD 1024x768dpi, 400cd/m2
- Android 11
Display
- LCD LED 10,4” 4:3 1024x768dpi
- Brightness: 400cd/m2
- 50.000h MTBF backlight
- View angle: 80/80/80/80°
Touchscreen/glass
- 10-point PCAP touch for fingers
- Resolution 4096 x 4096
- Delay <10ms
- 7H Tempered glass
Connectivity
I/O connections
- 2x USB 3.0
- 1x HDMI out
- 1x LAN RJ45
- 2x COM (RS232)
- 1xMicro SD-Slot
- 1x DC 5.5/2.1mm connector 12-36VDC
- 1x 3.5mm Audio I/O
For more technical details and options see datasheet
