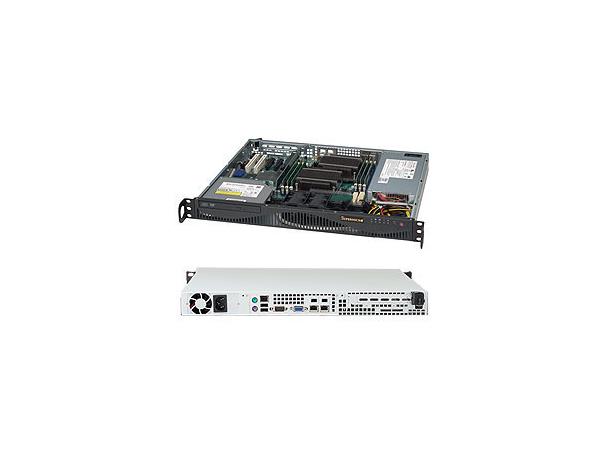

CSE-512F-350B 1U kabinett

Supermicro, 350W PSU

Product nr: 120555
CSE-512F-350B 1U kabinett Supermicro, 350W PSU
CSE-512F-350B
  • SuperChassis 512F-350B (Black)

Form Factor
14.5" Mini 1U chassis support for max. motherboard size - 12" x 10" ATX

Processor Support
Supports dual, single Intel® / AMD processors

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 14.5" (369mm)
Packaging
  • 22" (W) x 6.3" (H) x 20" (L)
Gross Weight
  • 14 lbs (6.4kg)
Available Colors
  • Black

Expansion Slot
1x full-height half-length expansion slot (Riser Card Required)

Drive Bays
Internal Bay
  • 2x 3.5" internal drive bays
    SAS or enterprise SATA HDD only recommended

Peripheral Drives
DVD-ROM
  • Slim DVD-ROM Drive (optional)

Front Panel
Buttons
  • Power On/Off button
  • Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Motherboard (for CSE-512F-350B)
H8SCMH8SCM-F
H8SGLH8SGL-F
H8SML-7H8SML-7F
H8SML-iH8SML-iF
X10SL7-FX10SLH-F
X10SLH-FX10SLL+-F
X10SLL-FX10SLM+-F
X10SLM+-LN4FX10SLM-F
X11SSH-CTFX11SSH-F
X11SSH-LN4FX11SSH-TF
X11SSi-LN4FX11SSL
X11SSL-CFX11SSL-F
X11SSL-nFX11SSM
X11SSM-FX11SSZ-F
X11SSZ-QFX11SSZ-TLN4F
X9DBL-3X9DBL-3F
X9DBL-iX9DBL-iF
X9SCI-LN4X9SCL
X9SCL+-FX9SCL-F
X9SCMX9SCM-F
X9SCM-iiFX9SRi
X9SRi-3FX9SRi-F
Server(s) for SC512F-350B
5017C-MF5018D-MF
5019S-ML
System Cooling
Fans
  • 2x 4cm 4-pin PWM Fans

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 29 Amp
+3.3V
  • 15 Amp
CertificationGold Level Certified
  Gold Certified
  [ Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
