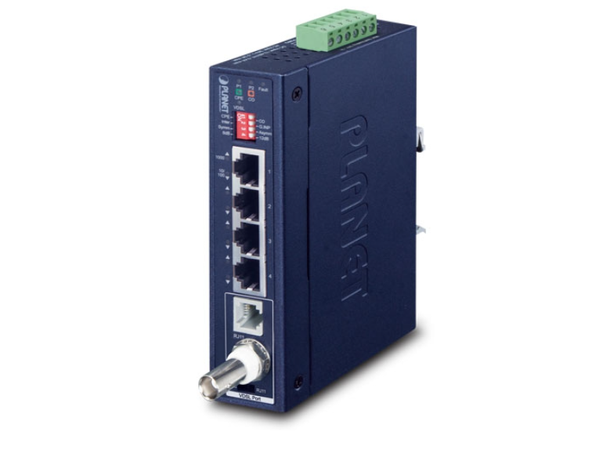

Long Reach Ethernet

• ITU-T G.993.5 G.Vectoring and G.INP
• Upstream/Downstream bandwidth up to 200/100Mbps
• CO/CPE mode selectable via DIP switch
• Selectable target band plan and SNR margin
• One BNC/RJ11 connector for VDSL connection
• Uses existing RG59/RG6 coaxial cable
• Used in pairs to extend Point-to-Point connection up to 1.2km
• Supports IEEE 802.1Q VLAN tag transparency

Industrial Case and Installation

• Slim-type IP30 metal case
• DIN rail and wall-mount design
• 12 to 48V DC, redundant power with polarity reverse protect function
• AC 24V power adapter acceptable
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Minimum installation time (Simply by Plug and Play)
• Supports extensive LED indicators for network diagnosis
