INDUSTRIAL ETHERNET SWITCHES

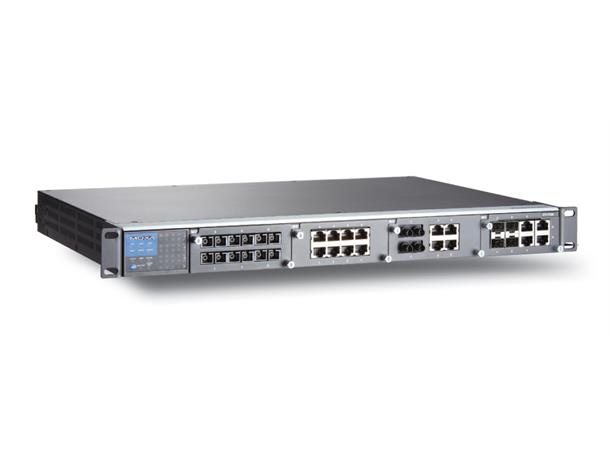

Moxa PT-7728-F-HV-HV 24+4G, L2 managed

3/100 Mbps modules, 1 slot for Gbps

Product nr: 106490
Moxa PT-7728-F-HV-HV 24+4G, L2 managed 3/100 Mbps modules, 1 slot for Gbps
Datablad
Features and Benefits

  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • Software-based IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks
  • VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
  • DHCP Option 82 for IP address assignment with different policies
  • EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
  • Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
  • IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
  • Supports advanced VLAN capability with Q-in-Q tagging*
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • Bandwidth management prevents unpredictable network status
  • Multi-port mirroring for online debugging
  • Automatic warning by exception through email, relay output
  • RMON for efficient network monitoring and proactive capability
  • Automatic recovery of connected device's IP addresses
  • Line-swap fast recovery
  • Configurable by Web browser, Telnet/Serial console, CLI*, Windows utility, and ABC-01 automatic backup configurator
  • Works with MXview industrial network management software
    *Available in Q3, 2011


    Cyber-security Features

  • User passwords with multiple levels of security protect against unauthorized configuration
  • SSH/HTTPS is used to encrypt passwords and data
  • Lock switch ports with 802.1x port-based network access control so that only authorized clients can access the port
  • Disable one or more ports to block network traffic
  • 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
  • Secure switch ports so that only specific devices and/or MAC addresses can access the ports
  • Radius/TACACS+ allows you to manage passwords from a central location (available in Q1 Y2011)
  • SNMPv3 provides encrypted authentication and access security


    Introduction

    The PowerTrans PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The PT-7728's Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs.

    The modular switchesdesign of the PT-7728 also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.
