Moxa MAT-5G-PA-SM-2-06-3M

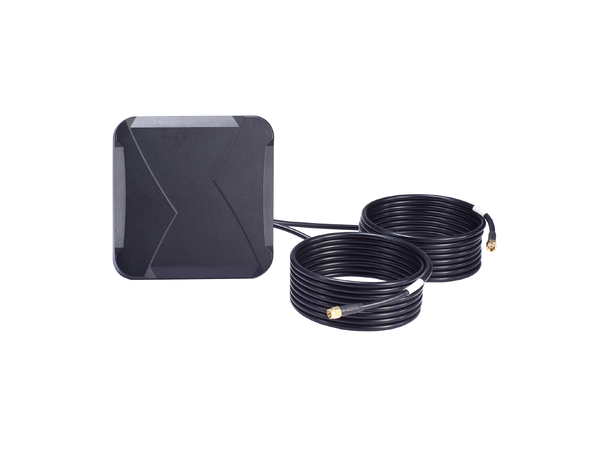

The Moxa MAT-5G-PA-SM-2-06-3M is a high-performance 2-in-1 MIMO panel antenna designed for global cellular applications, including GSM, UMTS, LTE, and 5G NR. With dual SMA (male) connectors and a 3-meter cable, it offers flexible installation and reliable signal performance across a wide frequency range. Its rugged design and IPx9K rating make it ideal for harsh industrial environments.
Key Features
- Wide Frequency Support: Covers 617–960 MHz, 1427–1510 MHz, 1710–2170 MHz, and 2300–2690 MHz bands.
- High Gain: Up to 7.10 dBi depending on frequency band.
- Connector Type: 2 SMA (male) connectors.
- Installation: Screw-mount with 3-meter SNC200 cable.
- Durability: IPx9K-rated housing for high-pressure, high-temperature washdowns.
- Operating Temperature: -40 to 85°C (-40 to 185°F).
Moxa MAT-5G-PA-SM-2-06-3M Specifications
Antenna Characteristics
- Type: Panel
- Polarization: Linear Vertical
- Impedance: 50 ohms
- Gain:
- 1.55 dBi @ 617–698 MHz (5G NR n71)
- 4.32 dBi @ 698–824 MHz (LTE 700)
- 5.18 dBi @ 824–960 MHz (GSM 850/900)
- 6.69 dBi @ 1427–1510 MHz (5G NR n74/75/76)
- 6.80 dBi @ 1710–1880 MHz (DCS)
- 7.10 dBi @ 1850–1990 MHz (PCS)
- 7.10 dBi @ 1920–2170 MHz (UMTS1)
- 5.41 dBi @ 2300–2690 MHz (LTE 2600)
Physical Characteristics
- Dimensions: 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
- Radome Material: Plastic
- Color: Black
- Mounting: Screw mount
- Cable: SNC200, 3 meters
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature: -40 to 85°C
- Humidity: 5% to 95% (non-condensing)
