Features
and Benefits
10/100BaseT(X) (RJ45 connector)
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-10 to 60°C wide operating temperature range
Introduction

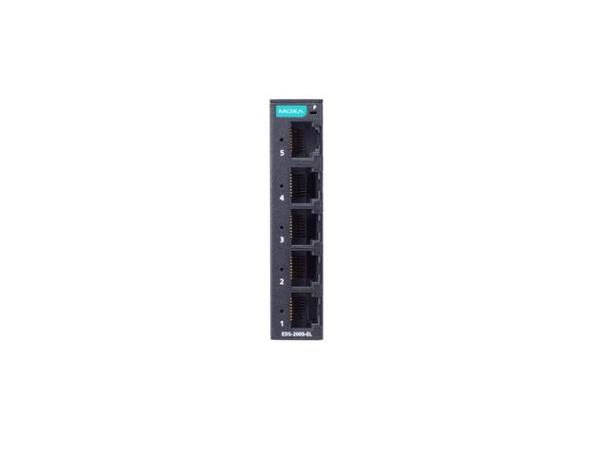

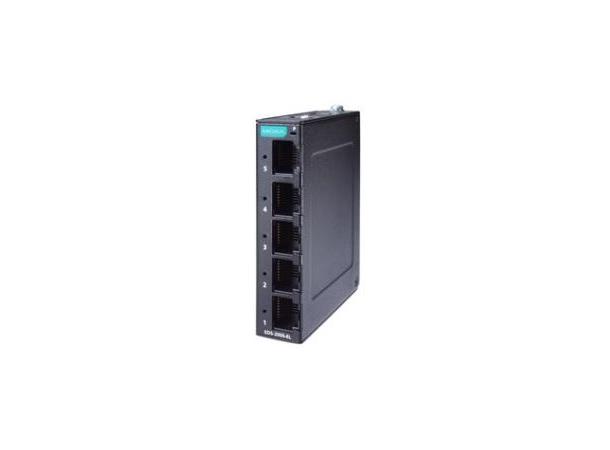

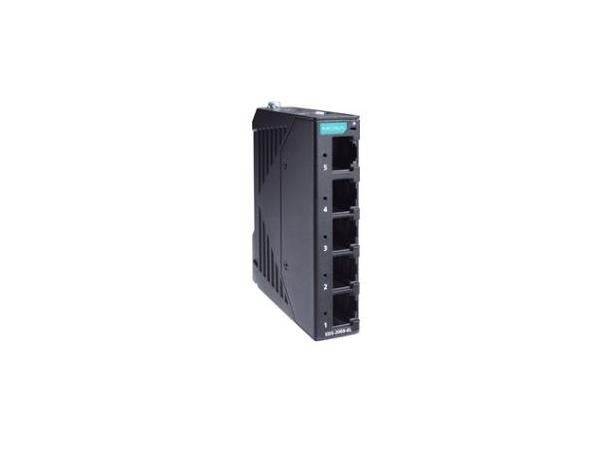

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper
ports, which are ideal for applications that require simple industrial Ethernet
connections. Moreover, to provide greater versatility for use with applications
from different industries, the EDS-2005-EL Series also allows users to enable
or disable the Quality of Service (QoS) function, and broadcast storm
protection (BSP) with DIP switches on the outer panel. In addition, the
EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in
industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail
mounting, and high-level EMI/EMC capabilities. In addition to its compact size,
the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will
function reliably after it has been deployed. The EDS-2005-EL Series has a
standard operating temperature range of -10 to 60°C with wide-temperature (-40
to 75°C) models also available.
