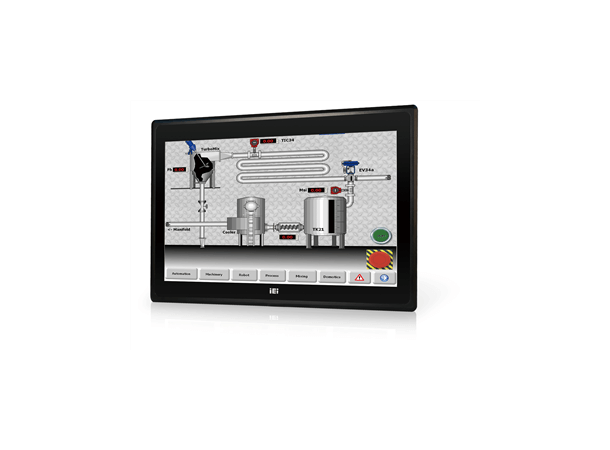

DM-F24A/PC-R40 24" Touch monitorIEI/VGA,HDMI,DP/9-36VDC/PCTouch(USB)

Spec Item		Description
Display	LCD Size	24”(16:9)
	Brightness(cd/m2)	250
	Max Resolution	1920 (W) x 1080 (H)
	Contrast Ratio	3000:1
	Backlight MTBF(hrs)	30000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
Power	Power adapter	9V~36V DC
Environment	Operating Temperature	-20°C ~ 60°C
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	382 x 600 x 49.4
Physical Characteristics	Cutout Dimensions	358.6 x 576.6
Weight	Weight	7.6 / 10.9
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.28 x 0.28
	Viewing Angle (H-V)	178° / 178°
Touch	Touch Screen	2-point projected capacitive 2-point touch window/ EETI EXC7200

DM-F24A/PC-R40 24" Touch monitor IEI/VGA,HDMI,DP/9-36VDC/PCTouch(USB)

Accessories

Alternatives

Articles

Number of articles found:

MONITORS

DM-F24A/PC-R40 24" Touch monitor

IEI/VGA,HDMI,DP/9-36VDC/PCTouch(USB)

Product nr: 131202

Description
Support

Spec Item		Description
Display	LCD Size	24”(16:9)
	Brightness(cd/m2)	250
	Max Resolution	1920 (W) x 1080 (H)
	Contrast Ratio	3000:1
	Backlight MTBF(hrs)	30000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
Power	Power adapter	9V~36V DC
Environment	Operating Temperature	-20°C ~ 60°C
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	382 x 600 x 49.4
Physical Characteristics	Cutout Dimensions	358.6 x 576.6
Weight	Weight	7.6 / 10.9
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.28 x 0.28
	Viewing Angle (H-V)	178° / 178°
Touch	Touch Screen	2-point projected capacitive 2-point touch window/ EETI EXC7200
