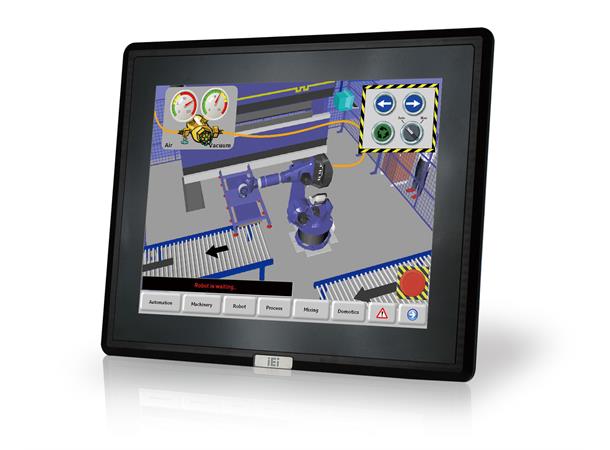

DM-F08A/R-R20 8" Touch monitorIEI/VGA,DVI/Res.Touch(USB)/AC

Spec Item		Description
Display	LCD Size	8”(4:3)
	Brightness(cd/m2)	500
	Max Resolution	800 (W) x 600 (H)
	Contrast Ratio	20.8340277777778
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack
Power	Power adapter	12V DC
Environment	Operating Temperature	-20°C ~ 60°C (with air flow)
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	222.2 x 182.2 x 42.7
Physical Characteristics	Cutout Dimensions	206 x 154
Weight	Weight	1.33/4.5
LCD	LCD Color	262K
	Pixel Pitch (mm)	0.0675 x 0.2025
	Viewing Angle (H-V)	140°/120°
Touch	Touch Screen	5-wire resistive single touch window
Touch	Touch Controller	Penmount 6000

DM-F08A/R-R20 8" Touch monitor IEI/VGA,DVI/Res.Touch(USB)/AC

Accessories

Alternatives

Articles

Number of articles found:

MONITORS

DM-F08A/R-R20 8" Touch monitor

IEI/VGA,DVI/Res.Touch(USB)/AC

Product nr: 120288

Description
Support

Spec Item		Description
Display	LCD Size	8”(4:3)
	Brightness(cd/m2)	500
	Max Resolution	800 (W) x 600 (H)
	Contrast Ratio	20.8340277777778
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack
Power	Power adapter	12V DC
Environment	Operating Temperature	-20°C ~ 60°C (with air flow)
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	222.2 x 182.2 x 42.7
Physical Characteristics	Cutout Dimensions	206 x 154
Weight	Weight	1.33/4.5
LCD	LCD Color	262K
	Pixel Pitch (mm)	0.0675 x 0.2025
	Viewing Angle (H-V)	140°/120°
Touch	Touch Screen	5-wire resistive single touch window
Touch	Touch Controller	Penmount 6000
