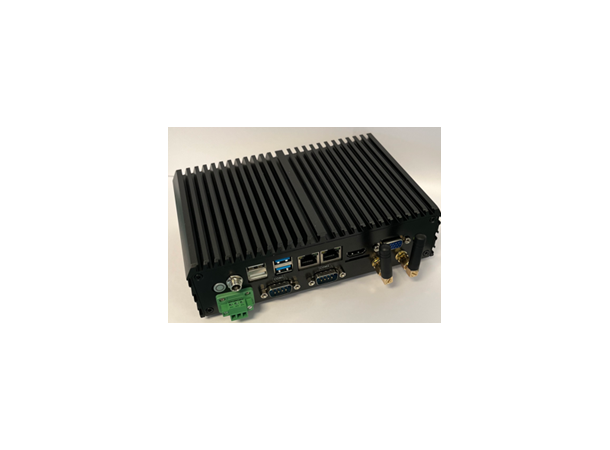

Powerful and efficient industrial Box-PC. Standard is without OS, memory or storage installed (Can be added on request) Contact Sales for options and recommendations.

Internals

• Industrial motherboard for a longer life-span.3,5” CX-J4125
• CPU: Intel® Celeron BT J4125 Quad-core 2 Ghz.
• 1 x SO-DIMM 204-pin 2400 MHz DDR4 (max 1x 8GB)

Storage

• SSD: mSATA

I/O Connections

• 2x USB 3.0, 2x USB 2.0
• 1x HDMI 1x VGA
• 2x LAN (1xGbE 1xFastE)
• 2x DB9 COM-port RS232 (Option 485)
• 1x Audio 3,5mm
• 2x SMA for WiFI or 3G/4G/5G
• 1x SIM card
• 1x DC 5,5/2,5mm 12-36VDC screw-on
• 1x 12-36VDC (3-PIN industrial connector)

Internal connectors

• 4x COM-port
• 1x GIPO 4in/4out (TTL)
• 1x Speaker
• 1x LVDS 800*600 – 1920*1080dpi
• 1x mPCIe slot (WiFi or 3G/4G/5G)
• 1x mPCIe slot (mSATA)
