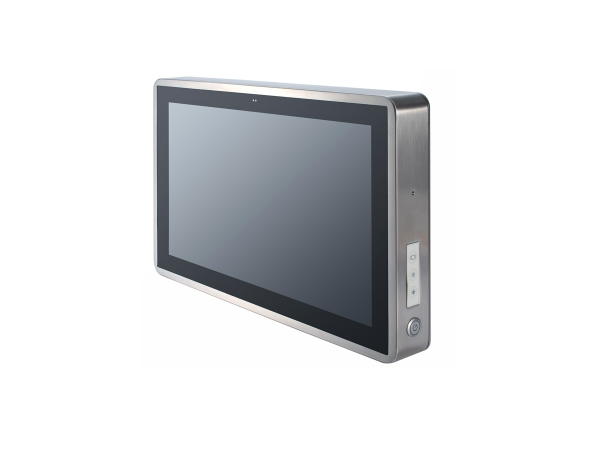

Panel PC

GOT821A-TGL-WCD 21,5" IP66/IP69K, 12-24V

11th Gen. i5-1145G7E, PCAP, Stainless

Product nr: 137141
GOT821A-TGL-WCD 21,5" IP66/IP69K, 12-24V 11th Gen. i5-1145G7E, PCAP, Stainless
got821a-tgl-wcd.pdf
LCD Panel
  • 21.5" FHD TFT LCD
  • 400 nits
  • 1920 x 1080 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-Coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 1 x DC power connector (M12)
  • 12 to 24 VDC
Power Comsumption
  • 78.7W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 552 x 55 x 338.4 mm (21.73" x 2.2" x 13.33")
Weight (net/gross)
  • 9.0 kg (19.84 lb) /12 kg (26.46 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • C1D2 (optional)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount
