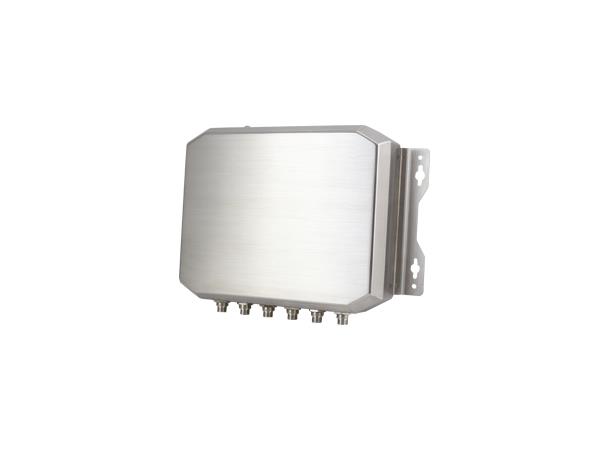

ACS-2702A-128GB IP67 Stainless

N2930/4GB ram/128GB SSD/Cables

Product nr: 128939
ACS-2702A-128GB IP67 Stainless N2930/4GB ram/128GB SSD/Cables
Datasheet
Specifications
System
CPUIntel Bay Trail N2930(1.83GHz)/E3845(1.91GHz) for option
System ChipsetSoC
System MemoryOnboard 2GB DDR3L 1600MHz/4GB for option
Power Consumption8.54W
IO Port
USB2 x USB 2.0 (by 1 x M12 8pin connector)
Serial / Parallel1 x RS-232, COM2(M12 connector)1 x RS-232/422/485, COM1 (Default RS-232) (M12 connector)
Graph1 x VGA (M12 connector)
LAN1 x GbE LAN RJ-45(M12 connector)
Power1 x DC Power (M12 connector)
Storage Space
HDD/SSD1 x 2.5" SATA2 HDD
Others1 x SD slot, up to 32GB
Expansion
Expansion slot1 x Internal Mini-PCIe slot full size
Power
Power input9~36V DC
Mechanical
ConstructionStainless Steel
IP ratingIP67 Certified and IP69K Compliant
MountingWall Mount
Dimension(mm)250x200x58.6(mm)
Environment
Operating temperature(°C)-20? to 60?
Storage temperature(°C)-40? to 85?
Storage humidity10 to 90%@ 40?, non-condensing
CertificationMeet CE / FCC
Operating System Support
Operating System SupportWindows Embedded 8.1 Industry ProWindows 7 Pro for EmbeddedWES7WE8S
Ordering Information
ItemDescription
Dimension
ViTAM, Panel PC, ARCHMI, Industrial Panel PC, Stainless Steel Panel PC, Water Proof Panel PC, Industrial Display-Intel Bay Trail E3845/N2930 IP67 Certified and IP69K Compliant Waterproof Box PC
