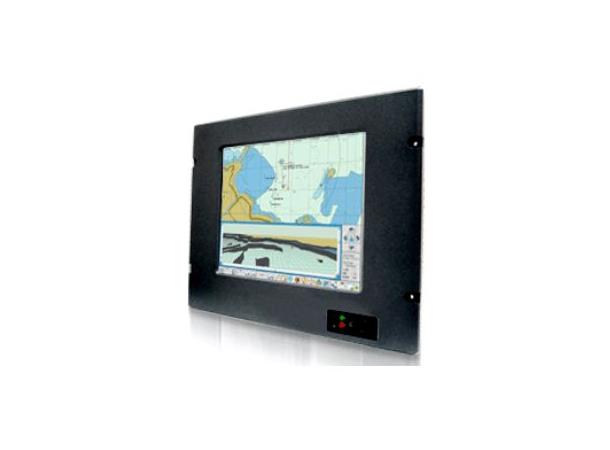

ENX 10" Marine Display/ Touch

10.4" Marine Bridge System Display

Product nr: 116266
ENX 10" Marine Display/ Touch 10.4" Marine Bridge System Display
Datablad
TFT Characteristics
Size10.4"
Panel_Display Resolution800x600
Pixel Pitch (RGB)0.264 (H) x 0.264 (V)
Panel_Contrast Ratio500:1 (typ.)
Panel_Brightness400 (typ.)
Panel_Viewing Angle-80~80 (H); -60~80 (V)
Active Display Area211.2 (H) x 158.4 (V)
Max Colors16.2M (8bits/color)
Input Signals
RGB SignalD-SUB 15P connector(female)
Composite VideoRCA phono plug
S-Video SignalS-Video (SVHS) plug
DVI-D SignalDVI-D input 24pin connector
DC Power SignalScrew terminal block
AC Power Signal (Optional)Std. IEC inlet
Touch Screen (Optional)D-SUB 9P connector (female)
Remote via RS-232 (Optional)D-SUB 9P connector (female)
User Controls
Power ControlPower On/Off via Front Button
VR ControlVR Brightness Knob Control
Display ControlOn Screen Display control(OSD)
OSD Remote ControlOSD Remote Control via RS-232
LED indicatorsPower Mode Status LED
Power Specifications
Power Supply Options24 V DC power supply with terminal block.(Isolated Power module)
Power Consumption21 W typical, normal operation
Mechanical and Environment
Net Weight (kg) (with touch)1.3
Operating Temperature-15 to 55 deg.C (-20 to 60 deg.C for optional heating)
Operating Humidity5% to 95% (non condensing)
Anti-Vibration5Hz~500Hz /1Grms /3 Axis
Anti Shock15G, 11ms duration
Available Options
Mechanical OptionsPanel (Flush) mount with IP66 (SAW touch for IP54)
Touch Screen OptionsSAW, 5 Wire Resistive
AR Safety Glass Option3mm Anti-reflective protection glass
VESA MountingYes
Bracket mountYes(Bracket Stand for option)
TransflectiveYes
Certification and Approvals
CertificationIEC 60945, DNV 2.4, IACS-E10
ApprovalsDNV Type Approval, CE, FCC ClassB
