Display

•    LCD LED 15” 1024x768dpi 4:3 aspect ratio

•    Brightness: 300cd/m2 (1000cd/m2 optional)

•    Contrast 1000:1

•    50.000h MTBF backlight

•    View angle: 89/89/89/89°

•    Responds time: 6,5ms.

Touch

•     10-points PCAP touch Screen for finger

•     Resolution 4096 x 4096

•     Respond time <10ms.

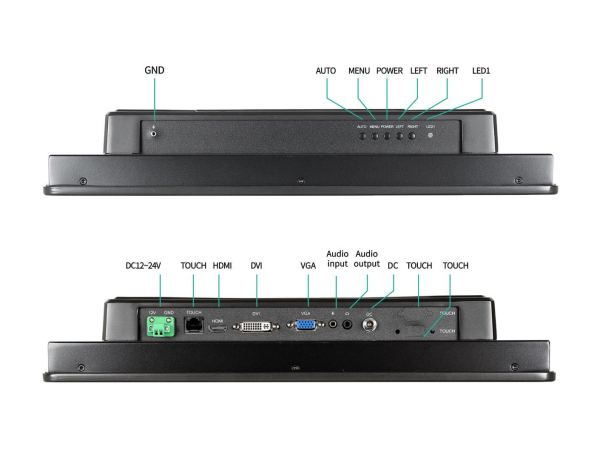

I/O interface

•    RS232 DB9 Touchscreen interface (can be ordered with RJ45 to USB touch interface. see picture in datasheet)

•    HDMI

•    DVI

•    VGA (1,5m cable included)

•    Audio input and output

•    Green industrial power connector 12-24V

•    12-24V DC Input
