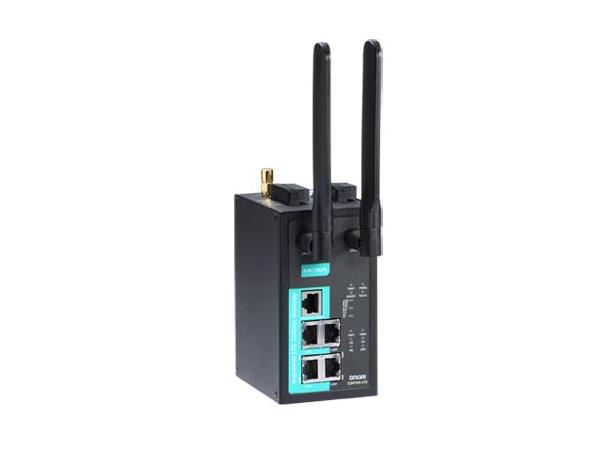

Moxa 4 port, 2G/3G/4G industrial LTE Ethernet IP gateway, B1/B3/B7/B8/B20, operating temperature - 30 to 55°C
Features and Benefits
•
LTE Band Support
- EU Model: 2100/1800/2600/900/800 MHz (B1/B3/B7/B8/B20)
•
Built-in high speed 4-port Ethernet switch
•
Industrial design with dual power input and built-in DI/DO support
•
Dual SIM with GuaranLink support
•
Antenna and power isolation design for higher device protection against interference
Introduction
The OnCell G3470A-LTE is Moxa’s LTE/Ethernet IP gateway that provides a higher cellular bandwidth and more reliable connection to your Ethernet network for cellular applications. With the integrated 4-port gigabit Ethernet switch and LTE support, the OnCell G3470A-LTE offers a faster cellular connection with a lower total cost of ownership. To enhance reliability, a key for industrial users, the OnCell G3470A-LTE features isolation design for both power and antenna inputs. Coupled with high-level EMS and wide-temperature support, the OnCell G3470A-LTE provides the highest level of device stability in any rugged environment. In addition, with dual SIM and dual powerinput features, the OnCell G3470A-LTE offers network redundancy to ensure an uninterrupted connectivity in your applications.
Multi-Band Support
• EU Model: 2100/1800/2600/900/800 MHz (B1/B3/B7/B8/B20)
Isolation and Redundancy Design
• Dual power input for power redundancy
• Dual SIM support for cellular connection redundancy
• Antenna isolation for protection against radio interference
• Power isolation for power source insulation protection
• GuaranLink for reliable cellular connnectivity
Moxa GuaranLink Technology
GuaranLink's 4-tier connection check helps cellular devices automatically detect connection issues, such as an unresponsive base station or deterioration of the connection quality below an acceptable level, and triggers the recovery process to resume cellular connections before these issues lead to a complete network failure. GuaranLink checks the following four key aspects of a cellular connection:
ISP Connection Check
The ISP initial connection check is the first step in GuaranLink's connection process, and is run whenever a cellular device registers with the base station. If the cellular device fails to register with the base station within the timeout period, the GuaranLink recovery process will be activated.
Cellular Connection-Alive Check
Cellular connection-alive checks are vital for cellular devices that continuously transmit data to the control center. The cellular connection check also includes a transmission connection check to provide higher connection reliability. In addition to detecting the data-transmission rate, the OnCell cellular devices keep the cellular connection alive by performing DNS lookups or sending ping commands to obtain the IP address of the intended receiver, remote host, and control center. Although the transmission connection check can increase airtime costs, it is necessary in some critical cellular applications to ensure continuous connectivity.
Packet-Level Check
Cellular devices need a reliable connection to the base station as well as the control center. The packet-level connection check ensures that there is a reliable link between a cellular device and the base station by periodically sending DNS lookups and remote-host pings, even when no data transmission is in progress, to check if a cellular network is available.
Transmission Connection Check
The OnCell cellular devices should receive data polling requests at regular intervals from remote hosts and the control center to keep the connection active. If no polling request is received within the time-out period, the GuaranLink recovery process is activated to ensure that the cellular connection is kept alive.
