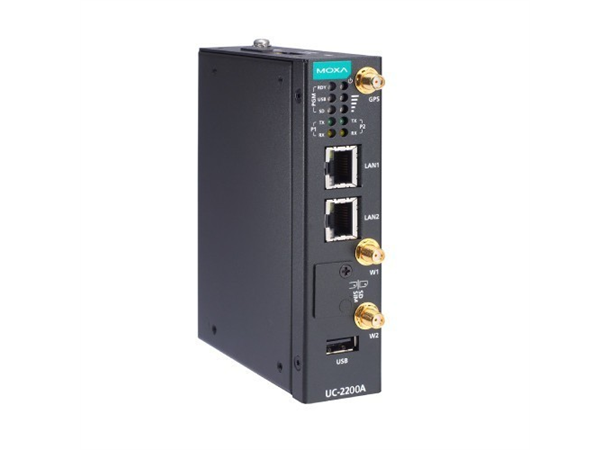

Moxa UC-2222A-T
UC-2200A Series
Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10) , -40 to 75°C operating temperature
Key feature
- Computer:
CPU: Armv8 Cortex-A53 dual-core 1GHz
DRAM: 2 GB DDR4
Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL, See www.moxa.com/MIL
Storage Pre-installed: 16 GB eMMC
Storage Slot: micro SD slots x 1 - Computer Interface:
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 2, software selectable (terminal block)
USB 2.0: USB 2.0 hosts x 1, type-A connectors
Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Expansion Slots: mPCIe slots x 1
Number of SIMs: 1
SIM Format: Nano
Buttons: Reset button
TPM: TPM v2.0 - Ethernet Interface:
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Magnetic Isolation Protection: 1.5 kV (built-in) - Serial Interface:
Baudrate: 300 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Flow Control
RTS/CTS: XON/XOFF,Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) - Serial Signals:
RS-232:TxD, RxD, RTS, CTS, GND
RS-422:Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND - Cellular Interface:
Cellular Standards: LTE Cat. 4
Band Options:
US Models:
LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
UMTS/HSPA B5 (850 MHz) / B4 (1700 MHz) / B2 (1900 MHz)
Carrier Approvals: Verizon, AT&T - EU Models:
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)/ LTE Band 28A (700 MHz)
UMTS/HSPA B8 (900 MHz) / B3 (1800 MHz) / B1 (2100 MHz) GSM DCS (1800 MHz) / GSM 900 (900 MHz) - AP Models:
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1800 MHz) / LTE Band 18 (800 MHz) / LTE Band 19 (800 MHz) / LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)
UMTS/HSPA B19 (800 MHz) / B8 (900 MHz) / B6 (850 MHz) / B5 (850 MHz) / B1 (2100 MHz) - GPS Interface:
Receiver Types: GPS, GLONASS, Galileo
Accuracy: Position: 2.0 m @CEP50
Acquisition: Hot starts: 1.1 sec , Cold starts: 29.94 sec
Sensitivity: Cold starts: -145 dBm , Tracking: -160 dBm
Time Pulse: 250 Hz to 10 MHz - LED Indicators:
System: Power x 1
SW ready (programmable)
USB (programmable) x 1
micro SD slot (programmable) x 1
Serial Port: TX x 2, RX x 2
Wireless Signal Strength: Cellular x 2, programmable
Disconnected: None
Very Poor Signal: 1 LED (blinking)
Poor Signal: 1 LED
Good Signal: 2 LEDs - Power Parameters:
Input Current:
Models Without Built-in LTE: 600mA @ 12 VDC , 300mA @ 24 VDC' - Models With Built-in LTE: 900mA @ 12 VDC , 450mA @ 24 VDC
Input Voltage: 12 to 24 VDC
Power Consumption:4.5 W (without external USB device) , 7.2 W (with external USB device) - Reliability:
Alert Tools:External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer) - Physical Characteristics:
Dimensions: 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in)
Weight: 546 g (1.2 lb)
Housing: SECC ,Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit) - Environmental Limits:
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27
Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) - Standards and Certifications:
EMC
EN 55032/35
EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Safety: EN 62368-1
UL 62368-1
International Approval: RCM,KC,BSMI
Green Product: RoHS, CRoHS, WEEE - MTBF
Time: 924,676 hrs
Standards: Telcordia (Bellcore) Standard TR/SR - Warranty:
Warranty Period:5 years
Details:See www.moxa.com/warranty
